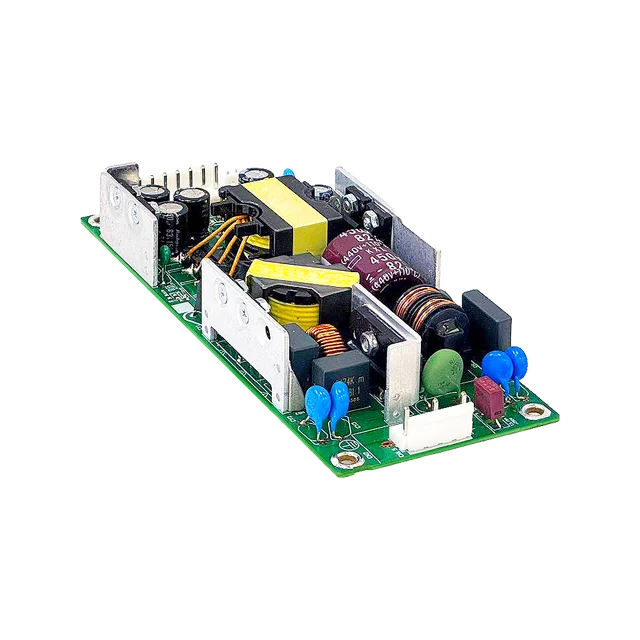

PJ-12V150WDRA

Open Frame

PJ Series

PJ-12V150WDRA

Output Voltage

12V

Output Power

150W

Output Current

12.5A

Input Voltage Range

85-264Vac

Dimensions (L x W x H)

160 x 75 x 27 mm (Open Frame)
188 x 85 x 47 mm (Enclosed)
6.29" x 2.95" x 1.06" (Open Frame)
7.40" x 3.34" x 1.85" (Enclosed)

Unit Weight

0.25 kg (Open Frame)
0.46 kg (Enclosed) (0.55 lb)

Highlights & Features
  • 200% Power Boost
  • Comply with JAPAN DEN-AN
  • Built-in Remote ON/OFF
  • Low profile design
  • Low Inrush Current / Low Leakage Current
  • High efficiency and power factor to conserve energy
  • Conforms to harmonic current IEC/EN/BS EN 61000-3-2, Class A
  • Conformal coating on PCBA to protect against chemical and dust pollutants
  • Versatile configuration options: Open Frame & Enclosed
Model Description
PJ-12V150WERA Enclosed, remote ON/OFF
Applications


PJ-12V150WDRA
PJ-12V150WDRA

Open Frame

PJ Series

PJ-12V150WDRA

Highlights & Features
  • 200% Power Boost
  • Comply with JAPAN DEN-AN
  • Built-in Remote ON/OFF
  • Low profile design
  • Low Inrush Current / Low Leakage Current
  • High efficiency and power factor to conserve energy
  • Conforms to harmonic current IEC/EN/BS EN 61000-3-2, Class A
  • Conformal coating on PCBA to protect against chemical and dust pollutants
  • Versatile configuration options: Open Frame & Enclosed
Output Voltage

12V

Output Power

150W

Output Current

12.5A

Input Voltage Range

85-264Vac

Dimensions

160 x 75 x 27 mm (Open Frame)
188 x 85 x 47 mm (Enclosed)
6.29" x 2.95" x 1.06" (Open Frame)
7.40" x 3.34" x 1.85" (Enclosed)

Unit Weight

0.25 kg (Open Frame)
0.46 kg (Enclosed) (0.55 lb)

Applications
Model Description
PJ-12V150WERA Enclosed, remote ON/OFF

Download

Download

Datasheet

Uploaded on 26-Dec-2025


Uploaded on 29-Dec-2025

Mechanical Drawing

Uploaded on 26-Dec-2025

.DXF

Uploaded on 26-Dec-2025

.STP

Uploaded on 26-Dec-2025

CE

Uploaded on 26-Dec-2025

CE & UKCA

Uploaded on 26-Dec-2025

TUV

Uploaded on 26-Dec-2025

UKCA

Uploaded on 26-Dec-2025

UL

Uploaded on 26-Dec-2025

Tech Specs

Tech Specs

Output Current
12.5A
Output Voltage
12V
Output Voltage Range
Output Voltage Adjustment Range
10.8-13.2Vdc
Output Power
150W
Output Current Adjustment Range
Max Output Voltage
Buffering Time
-
Line Regulation
+/- 0.5%
Load Regulation
+/- 0.5%
PARD
-
Start-up Time
500ms typ. @ 100Vac
Hold-up Time
30 ms typ. @ 100 Vac (100% load)
Dynamic Response (Overshoot & Undershoot O/P Voltage)
± 10% @ 115 & 230 Vac input, 10-100% load
(Slew Rate: 2.5 A/μS, 50% duty cycle @ 5 Hz & 10 KHz)
Start-up with Capacitive Loads
8,000µF Max
Remote ON/OFF
-
Protective Device
-
Voltage Drop Between Input and Output
-
Residual Ripple/PARD (20MHz)
-
Residual Ripple
-
Max. Power
-
Ripple & Noise
-
LED System Voltage Range in CC Mode
-
Rise Time
-
Power Boost Duration
-
Power Boost Recovery Time
-
Peak Power
-
Nominal Input Voltage
100-240Vac
Input Voltage Range
85-264Vac
Max Input Voltage
-
Nominal Input Frequency
50-60Hz
Input Frequency Range
47-63Hz
Nominal DC Input Voltage
DC Input Voltage Range
120-373 Vdc
Input Current
1.90A typ. @ 100Vac,
0.95A typ. @ 200Vac
Input Power (Standby Mode)
-
Efficiency at 100% load
88.0% typ. @ 100Vac,
91.5% typ. @ 200Vac
Inrush Current
15A typ. @ 100Vac,
30A typ. @ 200Vac
Charging Time
-
Power Factor at 100% load
0.98 typ. @ 100Vac, 0.95 typ. @ 200Vac
Leakage Current
0.2mA @ 100Vac,
0.4mA @ 240Vac
Nominal Current
-
Total Harmonic Distortion
-
Power Dissipation
-
Efficiency @ 10% load
-
Input Voltage Phase
-
Case Chassis / Cover
SGCC
Indicator
-
Cooling System
Convection
Input Terminal
JST B3P5-VH (LF)(SN)
Output Terminal
V–: JST B7P-VH (LF)(SN), V+: JST B6P-VH (LF)(SN)
Signal Terminal
-
Noise Sound Pressure Level (SPL)
-
Input/Output Terminal
-
Signal
-
Mounting Rail
-
Wire
AWG 22-18
Protection Structure
-
Terminal
-
Unit Weight
0.25 kg (Open Frame)
0.46 kg (Enclosed) (0.55 lb)
Dimensions
160 x 75 x 27 mm (Open Frame)
188 x 85 x 47 mm (Enclosed)
6.29" x 2.95" x 1.06" (Open Frame)
7.40" x 3.34" x 1.85" (Enclosed)
Vibration (Operating)
IEC 60068-2-6, Sine Wave:10 Hz to 500 Hz @ 2G; 10 min period,
60 min per axis for all X, Y, Z direction
Shock Test (Operating)
-
Operating Temperature
-40°C to +70°C
Storage Temperature
-40°C to +85°C
Power De-rating
Refer to Engineering Data Fig.1.1~Fig.1.5 on Page7~9
Operating Humidity
5 to 90% RH (Non-Condensing)
Shock Test (Non-Operating)
IEC 60068-2-27, Half Sine Wave 50G,11 ms, 3 shocks X, Y, and Z direction
Vibration (Non-Operating)
-
Storage Humidity
-
Operating Altitude
-
Pollution Degree
-
Bump Test (Operating)
-
Over Voltage Category
-
Corrosion
-
Shock
-
Vibration
-
Acoustic Noise
-
Overvoltage
14.0-18.0V, Latch Mode
Overload / Overcurrent
> 201% of rated load current, Hicc-up Mode, Non-Latching (Auto-Recovery)
Over Temperature
Latch Mode
Short Circuit
Hicc-up Mode, Non-Latching (Auto-Recovery when the fault is removed)
Reverse Polarity Protection
-
Degree of Protection
-
Protection Against Shock
Class I with Primary Earth connection
Input Polarity Protection
-
Battery Polarity Protection
-
Wrong Battery Voltage Protection
-
Deep Discharge Protection
-
Overload
-
Overcurrent
-
Internal Fuse
-
Insufficient Input Voltage Protection
-
MTBF
> 700,000 hrs. as per Telcordia SR-332
Expected Cap Life Time
10 years (115Vac, 50% load @ 40°C)
Safety Certificate
-
Electrical Safety
TUV Bauart: EN 62368-1
UL/cUL Recognized: UL 62368-1 and CSA C22.2 No. 62368-1
CB scheme: IEC 62368-1 Design to meet DENAN at 100 Vac
CE
In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
Medical Safety
-
Galvanic Isolation
Input to Output: 3.0 KVac
Input to Ground: 2.0 KVac
Output to Ground: 1.25 KVac
Industrial Control Equipment
-
Hazardous Location / ATEX
-
II 3 G ATEX 2014/34/EU
-
Electrical Equipments of Machines
-
Electrical Equipment for Use in Electrical Power Installations
-
Safety Entry Low Voltage
-
Maritime
-
Material and Parts
-
Isolation Resistance
-
PE Resistance
-
UKCA
In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016
Certificates for Other Countries
-
BIS
-
KC
-
Electrical Equipment for Measurement, Control, and Laboratory Use
-
ITE Safety
-
SIL3
-
Emission
CISPR 32, EN/BS EN 55032, Comply with FCC Title 47: Class B
Immunity
EN/BS EN 55035
Harmonic Current Emissions
IEC/EN/BS EN 61000-3-2, Class A & Class D
Voltage Fluctuation and Flicker
IEC/EN/BS EN 61000-3-3
ESD Immunity
-
Radiated Immunity
-
EFT
-
Surge
-
Conducted Immunity
-
Magnetic Field
-
Voltage Dips
-
Component Power Supply for General Use
-
Nominal Battery Voltage
-
Battery Voltage Range
-
Battery Capacity
-
Battery Charging Mode
-
End of Charge Voltage
-
Battery Fuse
-
Battery Discharging Voltage Range
-
Battery Charging Current
-
Battery Current Consumption
-
Discharging Current
-
Recommended Charging Voltage
-
