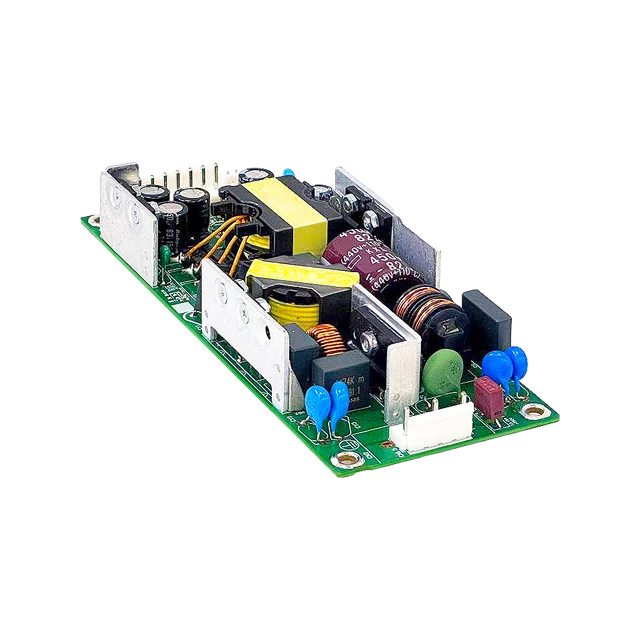

PJ-48V100WDRA

Open Frame

PJ Series

PJ-48V100WDRA

Output Voltage

48V

Output Power

100.8W

Output Current

2.1A

Input Voltage Range

85-264Vac

Dimensions (L x W x H)

155 x 62 x 27 mm (Open Frame)
185 x 72 x 45 mm (Enclosed)
6.10" x 2.44" x 1.06" (Open Frame)
7.28" x 2.83" x 1.77" (Enclosed)

Unit Weight

0.22 kg (Open Frame)
0.38 kg (Enclosed) (0.49 lb)

Highlights & Features

200% Power Boost
Comply with JAPAN DEN-AN
Built-in Remote ON/OFF
Low profile design
Low Inrush Current / Low Leakage Current
High efficiency and power factor to conserve energy
Conforms to harmonic current IEC/EN/BS EN 61000-3-2, Class A
Conformal coating on PCBA to protect against chemical and dust pollutants
Versatile configuration options: Open Frame & Enclosed

Optional Models

Model	Description
PJ-48V100WERA	Enclosed, remote ON/OFF

Applications

Download

Datasheet

Uploaded on 29-Dec-2025


Uploaded on 29-Dec-2025

Mechanical Drawing

Uploaded on 26-Dec-2025

.DXF

Uploaded on 26-Dec-2025

.STP

Uploaded on 26-Dec-2025

Certificates

Uploaded on 26-Dec-2025

TUV

Uploaded on 26-Dec-2025

UKCA

Uploaded on 26-Dec-2025

GUI Software

Tech Specs

Output Current

2.1A

Output Voltage

48V

Output Voltage Adjustment Range

43.2-52.8 Vdc

Output Power

100.8W

Line Regulation

+/- 0.5%

Load Regulation

+/- 0.5%

Start-up Time

500ms typ. @ 100Vac (100% load)

Hold-up Time

30ms typ. @ 100Vac (100% load)

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 10% @ 115 & 230 Vac input,10-100% load
(Slew Rate: 2.5 A/μS, 50% duty cycle @ 5 Hz & 10 KHz)

Start-up with Capacitive Loads

5,000µF Max

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

DC Input Voltage Range

120-373 Vdc

Input Current

1.35 A typ. @ 100 Vac
0.55 A typ. @ 200 Vac

Efficiency at 100% load

89% typ. @ 100Vac,
93% typ. @ 200Vac

Inrush Current

15A typ. @ 100Vac,
30A typ. @ 200Vac

Power Factor at 100% load

0.99 @ 100Vac,
0.97 @ 200Vac

Leakage Current

0.2mA @ 100Vac,
0.4mA @ 240Vac

Case Chassis / Cover SGCC
Indicator -
Cooling System Convection
Input Terminal JST B3P5-VH (LF)(SN)
Output Terminal JST B8P-VH (LF)(SN)
Signal Terminal -
Noise Sound Pressure Level (SPL) < 25dBA
Input/Output Terminal -
Signal -
Mounting Rail -
Wire AWG 22-18
Protection Structure -
Terminal -
Unit Weight 0.22 kg (Open Frame) 0.38 kg (Enclosed) (0.49 lb)	Dimensions 155 x 62 x 27 mm (Open Frame) 185 x 72 x 45 mm (Enclosed) 6.10" x 2.44" x 1.06" (Open Frame) 7.28" x 2.83" x 1.77" (Enclosed)

Vibration (Operating)

IEC 60068-2-6, Sine Wave:10 Hz to 500 Hz @ 2G;
10 min period, 60 min per axis for all X, Y, Z direction

Operating Temperature

-40°C to +70°C

Storage Temperature

-40°C to +85°C

Power De-rating

Refer to datasheet (Engineering Data Fig.1.1~Fig.1.5 on Page8~10)

Operating Humidity

5 to 90% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine Wave 50G,11 ms, 3 shocks X, Y, and Z direction

Operating Altitude

0 to 5,000 Meters (16,400 ft)

Pollution Degree

Over Voltage Category

II (Compliance to EN 62477-1 OVC III with 2000 meters altitude)

Overvoltage

55.0-68.0 V, Latch Mode

Overload / Overcurrent

> 201% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)

Over Temperature

Latch Mode

Short Circuit

Hicc-up Mode, Non-Latching (Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with Primary Earth connection

MTBF

> 700,000 hrs. as per Telcordia SR-332

Expected Cap Life Time

10 years (100 Vac, 50% load @ 40°C)

Electrical Safety

TUV Bauart: EN 62368-1 UL/cUL recognized: UL 62368-1 and CSA C22.2 No. 62368-1
CB scheme: IEC 62368-1
Design to meet DENAN at 100 Vac

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Galvanic Isolation

Input to Output: 3.0 KVac
Input to Ground: 2.0 KVac
Output to Ground: 1.25 KVac

Safety Entry Low Voltage

SELV

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

Emission

CISPR 32, EN/BS EN 55032, Comply with FCC Title 47: Class B

Immunity

EN/BS EN 55035

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A & Class D

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3
