MDS-150AAS24 F/B

适配器

MDS Adapter 系列

MDS-150AAS24 F/B

输出电压

24V

输出功率

150W

输出电流

6.25A

输入电压范围

90-264Vac

尺寸 (L x W x H)

170 x 85 x 40 mm

6.69” x 3.35” x 1.57”

重量

1.10 kg (2.43 lb)

亮点与特色

Meet DOE Level VI and ErP Lot 7
Safety Approvals to IEC 60601-1 & IEC 62368-1
Compliant with IEC 60601-1-2 4th Ed. Requirements
Low touch current (<0.1 mA Normal & <0.3 mA single fault)
Over-Voltage/Load/Temperature & Short Circuit protections
1 Million Hours MTBF
2 × MOPP isolation

** NRND **
推荐机种: MEA-160A24C GAA

Optional Models

型号	Description
MDS-150AAS24 BA	Class II with functional Earth, 4 Pin DIN
MDS-150AAS24 BE	Class II with functional Earth, tuning fork
MDS-150AAS24 FA	Class I, 4 Pin DIN

应用领域

适配器

MDS Adapter 系列

MDS-150AAS24 F/B

亮点与特色

Meet DOE Level VI and ErP Lot 7
Safety Approvals to IEC 60601-1 & IEC 62368-1
Compliant with IEC 60601-1-2 4th Ed. Requirements
Low touch current (<0.1 mA Normal & <0.3 mA single fault)
Over-Voltage/Load/Temperature & Short Circuit protections
1 Million Hours MTBF
2 × MOPP isolation

** NRND **
推荐机种: MEA-160A24C GAA

输出电压

24V

输出功率

150W

输出电流

6.25A

输入电压范围

90-264Vac

尺寸

170 x 85 x 40 mm

6.69” x 3.35” x 1.57”

重量

1.10 kg (2.43 lb)

应用领域

Optional Models

型号	Description
MDS-150AAS24 BA	Class II with functional Earth, 4 Pin DIN
MDS-150AAS24 BE	Class II with functional Earth, tuning fork
MDS-150AAS24 FA	Class I, 4 Pin DIN

资源下载

Datasheet

Uploaded on 28-Apr-2025

Manual

Uploaded on 22-Nov-2023


Uploaded on 10-Feb-2026

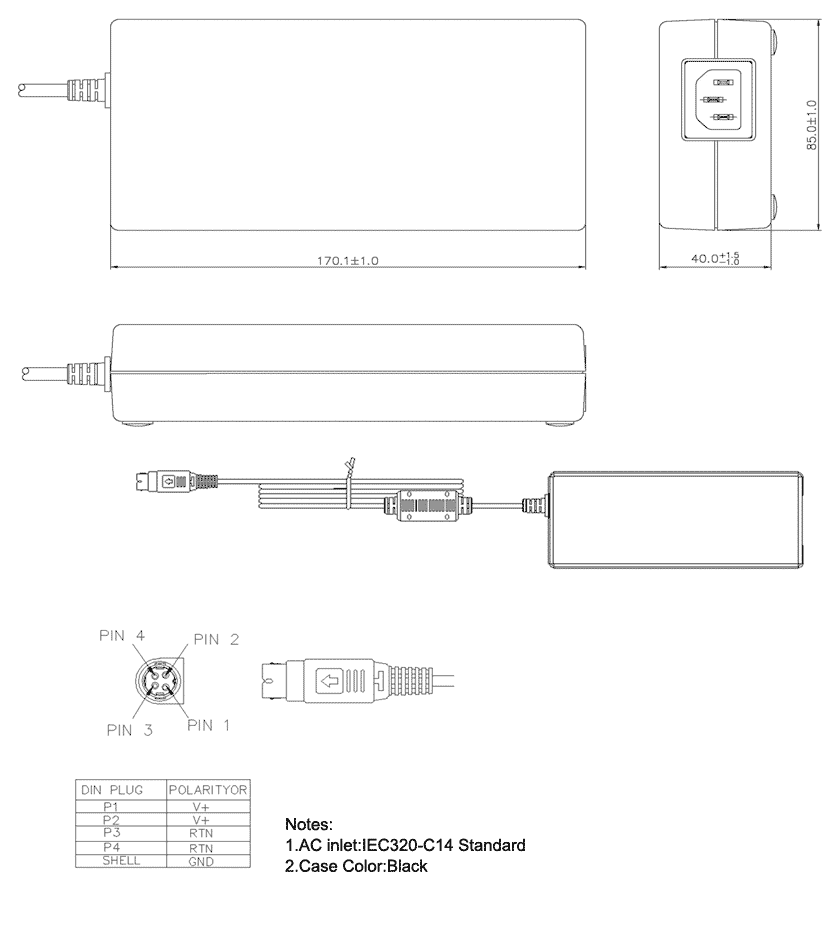

Mechanical Drawing

Uploaded on 22-Apr-2020

认证

Uploaded on 18-Oct-2023

CCC

Uploaded on 28-Dec-2023

CE & UKCA

Uploaded on 22-Jun-2021

FCC

Uploaded on 13-Dec-2021

PSE

Uploaded on 01-Apr-2023

REACH

Uploaded on 02-Mar-2026

RoHS

Uploaded on 02-Mar-2026

TSCA

Uploaded on 15-Nov-2023

Uploaded on 22-Apr-2020

GUI Software

Tech Specs

输出电流

6.25A

输出电压

24V

输出功率

150W

线电压调整率

± 0.5%

负载调整率

± 5%

开机时间

3000ms @ 115Vac

保持时间

20ms @ 115Vac

动态回应

± 5% @ 50-100% load

波纹与噪音

240mV pk-pk @ Full load

额定输入电压

100-240Vac

输入电压范围

90-264Vac

额定输入频率

50-60Hz

输入频率范围

47-63Hz

输入电流

4A @ 115Vac,
2A @ 230Vac

100% 负载效率

90.7% (typ.)

涌入电流

50A @ 115Vac,
100A @ 230Vac (typ.)

漏电流

0.1mA @ 275Vac NC,
0.3mA @ 275Vac SFC

底座 / 外壳上盖 PC
指示灯 -
冷却方式 -
输入端 -
输出端 -
信号端 -
声压级（SPL） -
输入/输出端 -
信号 -
安装导轨 -
电线 -
保护结构 -
端子台 -
重量 1.10 kg (2.43 lb)	尺寸 170 x 85 x 40 mm 6.69” x 3.35” x 1.57”

运行温度

0°C to +40°C

储存温度

-40°C to +85°C

功率降级

10-90% RH (Non-Condensing)

运行湿度

10-90% RH (Non-Condensing)

防震测试（非运行状态）

50G, 11ms, 3 shocks for each direction

振动测试（非运行状态）

5-500Hz, 2.09Grms, 20minutes for each three axis

运行高度

3,000 meters (9842.52 feet)

过压保护

150%, Latch Mode

超负载/过电保护

130% of rated load current, Hiccup Mode, (Non-Latching, Auto-Recovery)

过热保护

Hiccup Mode, (Non-Latching, Auto-Recovery)

短路保护

Hiccup Mode, (Non-Latching, Auto-Recovery)

防护等级

IP40

防震保护

Class II with functional earth

MTBF

1 Million Hours based on Telecordia SR-332

电气安全

IEC60950-1 (Ed.2,2005), IEC62368-1, GB4943.1-2011, GB9254-2008, GB17625.1-2003

In conformance with EN 60601-1 & EN 60601-1-2

医疗安全

IEC 60601-1 CB report
EN 60601-1 (2006) + A11 + A1 + A12, CAN/CSA-C22.2 No. 60601-1, ANSI/AAMI ES 60601-1:2005/(R)2012

电隔离

Input to Output: 4000 Vac

UKCA

Medical Devices Regulations 2002(UK MDR 2002)

ITE Safety

IEC 60950-1, IEC 62368-1, GB 4943.1, GB/T 9254.1, GB 17625.1

排放

EN/BS EN 55011, EN/BS EN 55032, FCC Title 47: Class B

谐波电流排放

IEC61000-3-2 Meet Class A & D limit

电压波动和闪变

IEC61000-3-3
