PMC-24V100W1AA

平板型电源

PMC 系列

PMC-24V100W1AA

输出电压

24V

输出功率

100W

输出电流

4.17A

输入电压范围

85-264Vac

尺寸 (L x W x H)

158 x 97 x 38 mm

6.22” x 3.82” x 1.50”

重量

0.41 kg (0.90 lb)

亮点与特色

全球通用交流输入电压范围
输入电压全范围功率不降级
铝制外壳和底盘全方位防腐蚀
MTBF > 700,000 hrs Telcordia SR-332
IEC/EN/UL 60950-1, IEC/EN/UL 62368-1 (信息类设备标准) 安规认证
可选 IP20 端子台及朝前型端子台

** 停产 **

PMC-24V100W1AA, PMC-24V100W1AL

推荐机种: PMT-24V100W2BA/PMT-24V100W2BAC

应用领域

平板型电源

PMC 系列

PMC-24V100W1AA

亮点与特色

全球通用交流输入电压范围
输入电压全范围功率不降级
铝制外壳和底盘全方位防腐蚀
MTBF > 700,000 hrs Telcordia SR-332
IEC/EN/UL 60950-1, IEC/EN/UL 62368-1 (信息类设备标准) 安规认证
可选 IP20 端子台及朝前型端子台

** 停产 **

PMC-24V100W1AA, PMC-24V100W1AL

推荐机种: PMT-24V100W2BA/PMT-24V100W2BAC

输出电压

24V

输出功率

100W

输出电流

4.17A

输入电压范围

85-264Vac

尺寸

158 x 97 x 38 mm

6.22” x 3.82” x 1.50”

重量

0.41 kg (0.90 lb)

应用领域

资源下载

Datasheet

Uploaded on 29-Nov-2021

Manual

Uploaded on 14-Nov-2020


Uploaded on 18-Aug-2025

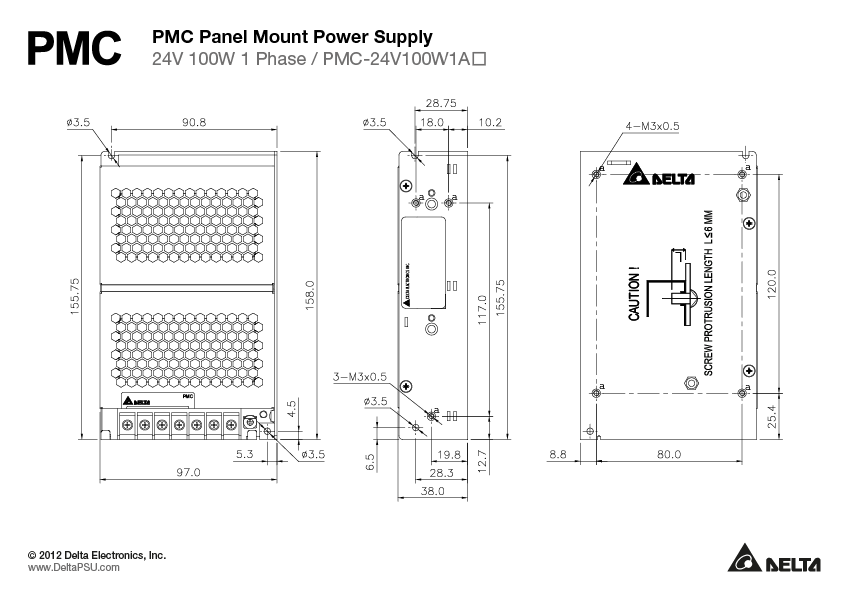

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

认证

Uploaded on 16-Nov-2020

CCC

Uploaded on 28-Feb-2023

Uploaded on 16-Nov-2020

EAC

Uploaded on 22-Apr-2020

Uploaded on 29-Nov-2021

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 28-May-2024

SIQ

Uploaded on 16-Nov-2020

TSCA

Uploaded on 15-Nov-2023

UKCA

Uploaded on 29-Nov-2021

Uploaded on 16-Nov-2020

GUI Software

Tech Specs

输出电流

4.17A

输出电压

24V

输出电压调整范围

22-28Vdc

输出功率

100W

线电压调整率

< 0.5% typ. (@ 85-264Vac input, 100% load)

负载调整率

< 1% typ. (@ 85-264Vac input, 0-100% load)

纹波电压

< 150mVpp

开机时间

< 1000ms @ nominal input (100% load)

保持时间

> 15ms @ 115Vac,
> 90ms @ 230Vac (100% load)

动态回应

± 5% @ 85-264Vac input, 0-100% load (Slew Rate: 0.1A/μS, 50% duty cycle @ 5Hz to 100Hz)

电容性负载启动

8,000µF Max

升压时间

< 30ms @ nominal input (100% load)

额定输入电压

100-240Vac

输入电压范围

85-264Vac

额定输入频率

50-60Hz

输入频率范围

47-63Hz

额定直流输入电压

125-250Vdc

直流输入电压范围

125-375Vdc

输入电流

< 2.0A @ 115Vac, < 1.1A @ 230Vac

100% 负载效率

> 86% @ 115Vac & 230Vac

涌入电流

< 50A @ 115Vac, < 100A @ 230Vac

功率因数

Conform to EN61000-3-2, Class A

漏电流

< 1mA @ 240Vac

底座 / 外壳上盖 Aluminium
指示灯 Green LED (DC OK)
冷却方式 Convection
输入端 -
输出端 -
信号端 -
声压级（SPL） < 40dBA
输入/输出端 -
信号 -
安装导轨 -
电线 -
保护结构 -
端子台 -
重量 0.41 kg (0.90 lb)	尺寸 158 x 97 x 38 mm 6.22” x 3.82” x 1.50”

运行温度

-10°C to +70°C

储存温度

-25°C to +85°C

功率降级

> 50°C de-rate power by 2.5% /°C

运行湿度

5 to 95% RH (Non-Condensing)

防震测试（非运行状态）

IEC60068-2-27, 30G (300m/S²) for a duration of 18ms 3 times per direction, 18 times in total

振动测试（非运行状态）

IEC60068-2-6, 10Hz to 150Hz @ 50m/S² (5G peak); 90 min per axis for all X, Y, Z direction

运行高度

3,000 Meters (9,840 ft.)

污染程度

过压保护

< 32V ±10%, SELV Output, Hiccup Mode, Non-Latching (Auto-Recovery)

超负载/过电保护

> 120% of rated load current, Hiccup Mode, Non-Latching (Auto recovery)

过热保护

< 75°C Surrounding Air Temperature @ 100% load, Non-Latching (Auto-recovery).

短路保护

Hiccup Mode, Non-Latching (Auto-recovery when the fault is removed).

防护等级

IP20 (PMC-24V100W1AJ)

防震保护

Class I with Primary Earth connection

MTBF

> 700,000 hrs, as per per Telcordia SR-332 I/P: 115Vac, O/P: 100% load, Ta: 25°C

预计最长使用寿命

10 years (115Vac & 230Vac, 50% load @ 40°C)

电气安全

SIQ Bauart : EN 62368-1
UL/cUL recognized : UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E191395)
CCC : GB4943.1
CB scheme : IEC 60950-1, IEC 62368-1 KC : KN32, KN35

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

电隔离

Input to Output: 3.0 KVac
Input to Ground: 1.5 KVac
Output to Ground: 0.5 KVac

安全特低电压

SELV (IEC 60950-1)

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and
The Electromagnetic Compatibility Regulations 2016 No. 1091

排放

Generic Standards: CISPR 32, EN/BS EN 55032, KN 32, FCC Title 47: Class B, GB 9254.1

抗扰度

Generic Standard: EN/BS EN 55024, KN 35

谐波电流排放

IEC/EN/BS EN 61000-3-2, Class A; GB 17625.1

电压波动和闪变

IEC/EN/BS EN 61000-3-3
