Delta PJT-18V100WBAA 18V 100W 5.55A 开架型电源 PJT Series

资源下载

Datasheet

Uploaded on 17-Dec-2025


Uploaded on 16-Dec-2025

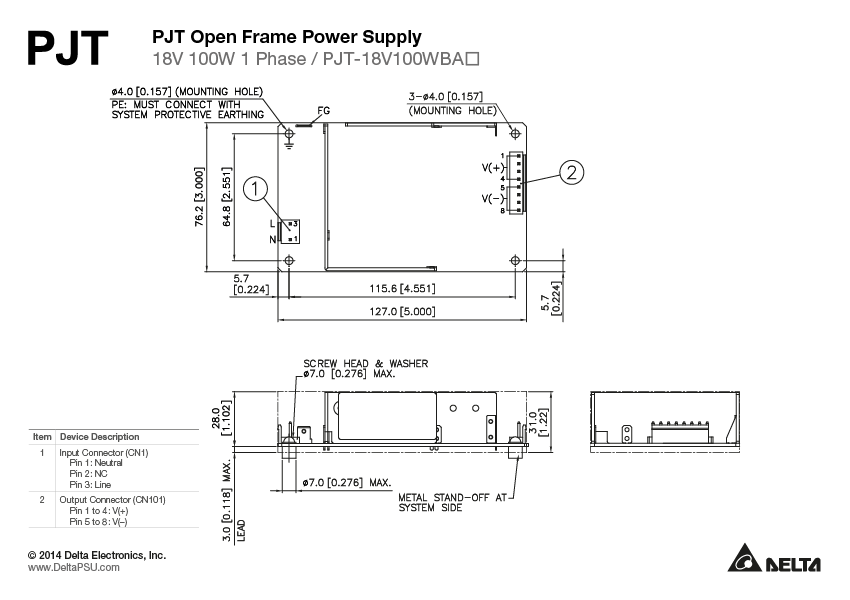

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 03-Sep-2021

认证

Uploaded on 18-Jan-2023

CE & UKCA

Uploaded on 23-Jul-2021

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 28-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 28-Nov-2020

Uploaded on 15-Dec-2020

GUI Software

Tech Specs

输出电流

5.55A

输出电压

18V

输出功率

100W

线电压调整率

± 0.5% @ 115Vac & 230Vac

负载调整率

± 1.0% @ 115Vac & 230Vac

纹波电压

< 180mVpp

开机时间

1000ms typ. @ 115Vac & 230Vac

保持时间

20ms typ. @ 115Vac & 230Vac

动态回应

± 5% @ 0-50% load; 50-100% load
(Slew Rate: 0.1A/µS)

电容性负载启动

3,000uF Max

额定输入电压

100-240Vac

输入电压范围

90-264Vac

额定输入频率

50-60Hz

输入频率范围

47-63Hz

输入电流

1.50A typ. @ 115Vac

100% 负载效率

87.5% typ. @ 115Vac & 230Vac

涌入电流

30A typ. @ 115Vac, 60A typ. @ 230Vac

漏电流

0.1mA @ 240Vac

底座 / 外壳上盖 -
指示灯 -
冷却方式 Convection
输入端 -
输出端 -
信号端 -
声压级（SPL） -
输入/输出端 -
信号 -
安装导轨 -
电线 AWG 22-18
保护结构 -
端子台 -
重量 0.21 kg (0.46 lb)	尺寸 127 x 76.2 x 31 mm 5.00” x 3.00” x 1.22”

振动测试（运行状态）

IEC 60068-2-6, Sine Wave: 10Hz to 150Hz @ 25m/S² (2.5G); 10 min per cycle, 90 min per axis for all X, Y, Z direction

运行温度

-10°C to +70°C

储存温度

-40°C to +85°C

功率降级

> 50°C de-rate power by 2.5% / °C

运行湿度

10 to 95% RH (Non-Condensing)

防震测试（非运行状态）

IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11ms, 3 shocks for each 3 directions

运行高度

0 to 5,000 Meters (16,400 ft.)

污染程度

过压类别

过压保护

< 27.0V, Latch Mode

超负载/过电保护

< 150% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)

过热保护

Non-Latching (Auto-Recovery)

短路保护

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

防震保护

Class I with Primary Earth connection

MTBF

> 700,000 hrs. as per Telcordia SR-332

电气安全

TUV Bauart: EN 60950-1, EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E131881), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E131881)
CB scheme: IEC 60950-1, IEC 62368-1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

电隔离

Input to Output: 3.0KVac
Input to Ground: 1.5KVac
Output to Ground: 0.5KVac

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

排放

(CE & RE)
CISPR 32, EN/BS EN 55032, FCC Title 47: Class B

抗扰度

EN/BS EN 55024

谐波电流排放

IEC/EN/BS EN 61000-3-2, Class A

电压波动和闪变

IEC/EN/BS EN 61000-3-3
