MDS-060AAS15 B

适配器

MDS Adapter 系列

MDS-060AAS15 B

输出电压

15V

输出功率

60W

输出电流

输入电压范围

90-275Vac

尺寸 (L x W x H)

135 x 62 x 34.1 mm

5.31” x 2.44” x 1.34”

重量

0.36 kg (0.79 lb)

亮点与特色

Meet Efficiency Level VI
Safety Approvals to IEC 60601-1 3.1rd ed. & IEC 62368-1
Compliant with IEC 60601-1-2 4th Ed. Requirements
Low touch current (<0.1 mA Normal & <0.3 mA single fault)
Over-Voltage/Load/Temperature & Short Circuit protections
1 Million Hours MTBF
2 × MOPP isolation
3 years warranty

** 停用产品 **
取代机种: MEA-065A15C A-A

应用领域

适配器

MDS Adapter 系列

MDS-060AAS15 B

亮点与特色

Meet Efficiency Level VI
Safety Approvals to IEC 60601-1 3.1rd ed. & IEC 62368-1
Compliant with IEC 60601-1-2 4th Ed. Requirements
Low touch current (<0.1 mA Normal & <0.3 mA single fault)
Over-Voltage/Load/Temperature & Short Circuit protections
1 Million Hours MTBF
2 × MOPP isolation
3 years warranty

** 停用产品 **
取代机种: MEA-065A15C A-A

输出电压

15V

输出功率

60W

输出电流

输入电压范围

90-275Vac

尺寸

135 x 62 x 34.1 mm

5.31” x 2.44” x 1.34”

重量

0.36 kg (0.79 lb)

应用领域

资源下载

Datasheet

Uploaded on 09-Aug-2022

Manual

Uploaded on 22-Nov-2023


Uploaded on 10-Feb-2026

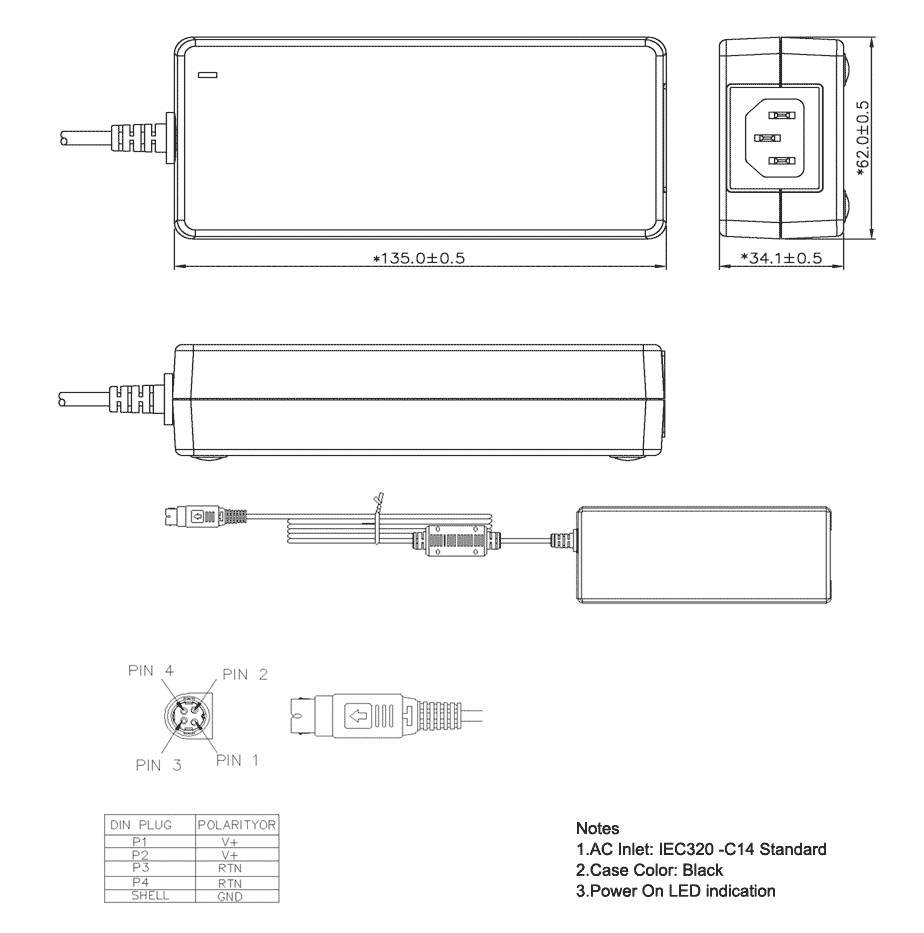

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

认证

Uploaded on 19-Jan-2023

CCC

Uploaded on 21-Feb-2024

CE & UKCA

Uploaded on 21-Jun-2021

REACH

Uploaded on 02-Mar-2026

RoHS

Uploaded on 02-Mar-2026

TSCA

Uploaded on 15-Nov-2023

Uploaded on 15-Sep-2020

GUI Software

Tech Specs

输出电流

输出电压

15V

输出功率

60W

线电压调整率

± 0.5%

负载调整率

± 4.5%

开机时间

3000ms @ 115Vac

保持时间

10ms @ 115Vac

动态回应

± 5% @ 50-100% load

波纹与噪音

61mV pk-pk @ Full load

额定输入电压

100-250Vac

输入电压范围

90-275Vac

额定输入频率

50-60Hz

输入频率范围

47-63Hz

输入电流

1.5A @ 115Vac,
0.75A @ 230Vac

100% 负载效率

88.2% (typ.)

涌入电流

50A @ 115Vac,
100A @ 230Vac (typ.)

漏电流

0.1mA @ 275Vac NC,
0.3mA @ 275Vac SFC

底座 / 外壳上盖 PC
指示灯 LED
冷却方式 -
输入端 C14 socket
输出端 4 pin Din
信号端 -
声压级（SPL） -
输入/输出端 -
信号 -
安装导轨 -
电线 -
保护结构 -
端子台 -
重量 0.36 kg (0.79 lb)	尺寸 135 x 62 x 34.1 mm 5.31” x 2.44” x 1.34”

运行温度

0°C to +40°C

储存温度

-40°C to +85°C

运行湿度

10-95% RH (Non-Condensing)

防震测试（非运行状态）

50G, 11ms, 3 shocks for each direction

振动测试（非运行状态）

5-500Hz, 2.09Grms, 20 minute for each three axis

运行高度

3,000 meters (9,840 feet)

过压保护

150%, Latch Mode

超负载/过电保护

180% of rated load current, Hiccup Mode, (Non-Latching, Auto-Recovery)

过热保护

Hiccup Mode, (Non-Latching, Auto-Recovery)

短路保护

Hiccup Mode, (Non-Latching, Auto-Recovery)

防护等级

IP40

防震保护

Class I

MTBF

1 million Hrs based on Telecordia SR-332

电气安全

IEC60950-1 (Ed.2,2005), IEC62368-1, GB4943.1-2011, GB9254-2008, GB17625.1-2003

In conformance with EN 60601-1: 2006 + A11: 2011 + A1: 2013 + A12: 2014 & EN 60601-1-2: 2015

医疗安全

IEC60601-1 3rd and 3.1rd edition CB report
IEC60601-1 edition 3.1rd (2012), EN60601-1 (2006) + A11 + A1 + A12, CAN/CSA-C22.2 NO. 60601-1:14, ANSI/AAMI ES60601-1:2005/(R)2012

电隔离

Input to Output: 4000Vac
Input to Ground: 1500Vac
Output to Ground: 500Vac

UKCA

Medical Devices Regulations 2002(UK MDR 2002)

排放

EN/BS EN 55011, EN/BS EN 55032, Compliance to FCC Title 47: Class B

谐波电流排放

IEC61000-3-2, Meet Class A limit

电压波动和闪变

IEC61000-3-3
