PMC-DSPV100W1A

平板型電源

PMC 系列

PMC-DSPV100W1A

輸出電壓

24V,5V

輸出功率

100W

輸出電流

2.7A,7A

輸入電壓範圍

85-264Vac

尺寸 (L x W x H)

178 x 97 x 38 mm

7.01” x 3.82” x 1.50”

重量

0.52 kg (1.15 lb)

亮點與特色

Universal AC input voltage range
Power will not de-rate for the entire input voltage range
Full corrosion resistant aluminium casing
Conforms to harmonics current IEC/EN 61000-3-2, Class A
High MTBF >700,000 hrs. as per Telcordia SR-332
Safety approval according to IEC/EN/UL 60950-1, IEC/EN/UL 62368-1 and EMI to EN 55022, Class B

** 停產 **

應用領域

平板型電源

PMC 系列

PMC-DSPV100W1A

亮點與特色

Universal AC input voltage range
Power will not de-rate for the entire input voltage range
Full corrosion resistant aluminium casing
Conforms to harmonics current IEC/EN 61000-3-2, Class A
High MTBF >700,000 hrs. as per Telcordia SR-332
Safety approval according to IEC/EN/UL 60950-1, IEC/EN/UL 62368-1 and EMI to EN 55022, Class B

** 停產 **

輸出電壓

24V,5V

輸出功率

100W

輸出電流

2.7A,7A

輸入電壓範圍

85-264Vac

尺寸

178 x 97 x 38 mm

7.01” x 3.82” x 1.50”

重量

0.52 kg (1.15 lb)

應用領域

資源下載

Datasheet

Uploaded on 02-Nov-2021

Manual

Uploaded on 22-Apr-2020


Uploaded on 16-Aug-2025

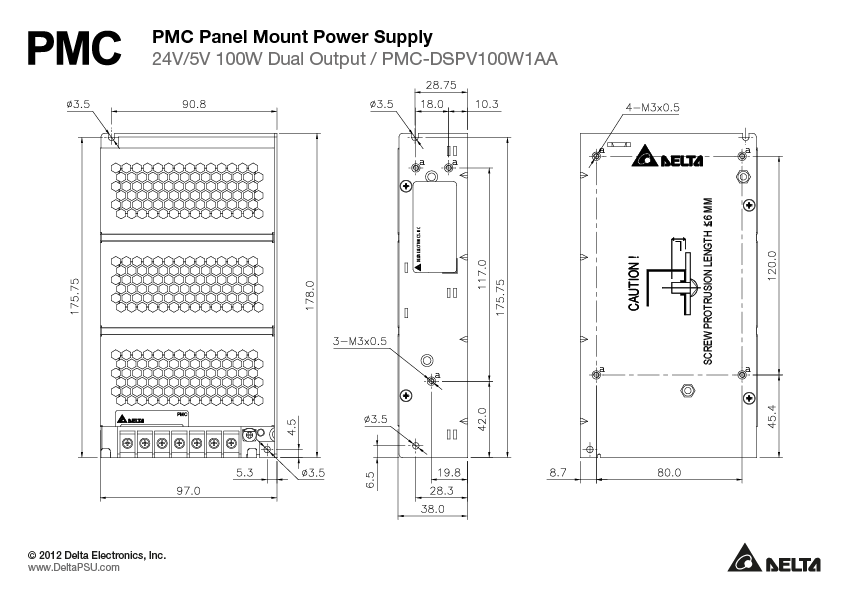

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

認證

Uploaded on 03-Dec-2020

CCC

Uploaded on 01-Apr-2021

Uploaded on 03-Dec-2020

EAC

Uploaded on 22-Apr-2020

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 28-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 03-Dec-2020

UKCA

Uploaded on 02-Nov-2021

Uploaded on 03-Dec-2020

GUI Software

Tech Specs

輸出電流

2.7A,7A

輸出電壓

24V,5V

輸出電壓調整範圍

V1 : 22.8-26.4Vdc

輸出功率

100W

線電壓調整率

< 0.5% typ. (@ 85-264Vac input, 100% load)

負載調整率

< 1% Typical (@ 85 to 264Vac input, V1: 100% rated load and V2: 60% rated load and vice versa)

紋波電壓

V1: <200mVpp, V2: <80mVpp

開機時間

< 1000ms @ nominal input (100% load)

保持時間

> 15ms @ 115Vac,
> 80ms @ 230Vac (100% load)

動態回應

± 5% @ V1: 0

電容性負載啟動

V1: 4,000JF Max

額定輸入電壓

100-240Vac

輸入電壓範圍

85-264Vac

額定輸入頻率

50-60Hz

輸入頻率範圍

47-63Hz

額定直流輸入電壓

125-250Vdc

直流輸入電壓範圍

125-375Vdc

輸入電流

< 2.0A @ 115Vac, < 1.1A @ 230Vac

100% 負載效率

> 84% @ 115Vac,
> 86% @ 230Vac

浪湧電流

< 50A @ 115Vac, < 100A @ 230Vac

功率因數

Conform to EN61000-3-2, Class A

漏電流

< 1mA @ 240Vac

底架 / 外殼 Aluminium
指示燈 -
冷卻方式 Convection
輸入端 -
輸出端 -
信號端 -
聲壓級（SPL） -
輸入/輸出端 -
信號 -
安裝導軌 -
電線 -
保護結構 -
端子台 -
重量 0.52 kg (1.15 lb)	尺寸 178 x 97 x 38 mm 7.01” x 3.82” x 1.50”

運行溫度

-10°C to +70°C

儲存溫度

-25°C to +85°C

功率降額

> 50°C de-rate power by 2.5% /°C

運行濕度

< 95% RH

衝擊測試（非運行狀態）

IEC60068

振動測試（非運行狀態）

IEC60068

過壓保護

V1: < 32.4V, V2: 6.75V, Hiccup Mode, Non-Latching (Auto recovery)

超負載/過電保護

OLP: > 150% of total rated output power, Hiccup Mode, Non-Latching (Auto recovery)

過溫保護

< 75°C Surrounding Air Temperature @ 100% load,
Non-Latching (Auto-recovery).

短路保護

Hiccup Mode, Non-Latching
(Auto-recovery when the fault is removed)

防護等級

IPX0

MTBF

> 700,000 hrs. per Telcordia SR-332

電氣安全

TUV Bauart: EN 60950-1, EN 62368-1
cRUus: UL 60950-1 and CSA C22.2 No. 60950-1
UL 62368-1 and CSA C22.2 No. 62368-1
CB scheme: IEC 60950-1, IEC 62368-1
CCC: GB4943

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

電隔離

Input to Output: 3.0 KVac
Input to Ground: 1.5 KVac
Output to Ground: 0.5 KVac

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and
The Electromagnetic Compatibility Regulations 2016 No. 1091

輻射與傳導

Generic Standards: CISPR32, EN/BS EN 55032, FCC Title 47: Class B, GB 9254

抗擾度

Generic Standards: EN/BS EN 55024
