PMC-24V100W1AA

平板型電源

PMC 系列

PMC-24V100W1AA

輸出電壓

24V

輸出功率

100W

輸出電流

4.17A

輸入電壓範圍

85-264Vac

尺寸 (L x W x H)

158 x 97 x 38 mm

6.22” x 3.82” x 1.50”

重量

0.41 kg (0.90 lb)

亮點與特色

全球通用交流輸入電壓範圍
輸入電壓全範圍功率不降額
鋁制外殼和底架全方位防腐蝕
MTBF > 700,000 hrs Telcordia SR-332
IEC/EN/UL 60950-1, IEC/EN/UL 62368-1 (信息類設備標準) 安規認證
可選 IP20 端子台及朝前型端子台

** 停產 **

PMC-24V100W1AA, PMC-24V100W1AL

推薦機種: PMT-24V100W2BA/PMT-24V100W2BAC

應用領域

平板型電源

PMC 系列

PMC-24V100W1AA

亮點與特色

全球通用交流輸入電壓範圍
輸入電壓全範圍功率不降額
鋁制外殼和底架全方位防腐蝕
MTBF > 700,000 hrs Telcordia SR-332
IEC/EN/UL 60950-1, IEC/EN/UL 62368-1 (信息類設備標準) 安規認證
可選 IP20 端子台及朝前型端子台

** 停產 **

PMC-24V100W1AA, PMC-24V100W1AL

推薦機種: PMT-24V100W2BA/PMT-24V100W2BAC

輸出電壓

24V

輸出功率

100W

輸出電流

4.17A

輸入電壓範圍

85-264Vac

尺寸

158 x 97 x 38 mm

6.22” x 3.82” x 1.50”

重量

0.41 kg (0.90 lb)

應用領域

資源下載

Datasheet

Uploaded on 29-Nov-2021

Manual

Uploaded on 14-Nov-2020


Uploaded on 18-Aug-2025

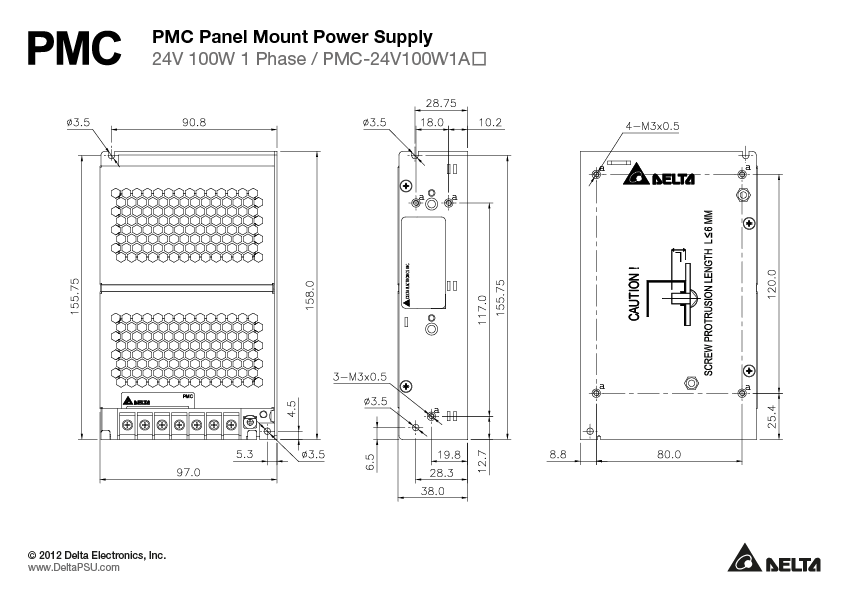

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

認證

Uploaded on 16-Nov-2020

CCC

Uploaded on 28-Feb-2023

Uploaded on 16-Nov-2020

EAC

Uploaded on 22-Apr-2020

Uploaded on 29-Nov-2021

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 28-May-2024

SIQ

Uploaded on 16-Nov-2020

TSCA

Uploaded on 15-Nov-2023

UKCA

Uploaded on 29-Nov-2021

Uploaded on 16-Nov-2020

GUI Software

Tech Specs

輸出電流

4.17A

輸出電壓

24V

輸出電壓調整範圍

22-28Vdc

輸出功率

100W

線電壓調整率

< 0.5% typ. (@ 85-264Vac input, 100% load)

負載調整率

< 1% typ. (@ 85-264Vac input, 0-100% load)

紋波電壓

< 150mVpp

開機時間

< 1000ms @ nominal input (100% load)

保持時間

> 15ms @ 115Vac,
> 90ms @ 230Vac (100% load)

動態回應

± 5% @ 85-264Vac input, 0-100% load (Slew Rate: 0.1A/μS, 50% duty cycle @ 5Hz to 100Hz)

電容性負載啟動

8,000µF Max

升壓時間

< 30ms @ nominal input (100% load)

額定輸入電壓

100-240Vac

輸入電壓範圍

85-264Vac

額定輸入頻率

50-60Hz

輸入頻率範圍

47-63Hz

額定直流輸入電壓

125-250Vdc

直流輸入電壓範圍

125-375Vdc

輸入電流

< 2.0A @ 115Vac, < 1.1A @ 230Vac

100% 負載效率

> 86% @ 115Vac & 230Vac

浪湧電流

< 50A @ 115Vac, < 100A @ 230Vac

功率因數

Conform to EN61000-3-2, Class A

漏電流

< 1mA @ 240Vac

底架 / 外殼 Aluminium
指示燈 Green LED (DC OK)
冷卻方式 Convection
輸入端 -
輸出端 -
信號端 -
聲壓級（SPL） < 40dBA
輸入/輸出端 -
信號 -
安裝導軌 -
電線 -
保護結構 -
端子台 -
重量 0.41 kg (0.90 lb)	尺寸 158 x 97 x 38 mm 6.22” x 3.82” x 1.50”

運行溫度

-10°C to +70°C

儲存溫度

-25°C to +85°C

功率降額

> 50°C de-rate power by 2.5% /°C

運行濕度

5 to 95% RH (Non-Condensing)

衝擊測試（非運行狀態）

IEC60068-2-27, 30G (300m/S²) for a duration of 18ms 3 times per direction, 18 times in total

振動測試（非運行狀態）

IEC60068-2-6, 10Hz to 150Hz @ 50m/S² (5G peak); 90 min per axis for all X, Y, Z direction

運行高度

3,000 Meters (9,840 ft.)

污染程度

過壓保護

< 32V ±10%, SELV Output, Hiccup Mode, Non-Latching (Auto-Recovery)

超負載/過電保護

> 120% of rated load current, Hiccup Mode, Non-Latching (Auto recovery)

過溫保護

< 75°C Surrounding Air Temperature @ 100% load, Non-Latching (Auto-recovery).

短路保護

Hiccup Mode, Non-Latching (Auto-recovery when the fault is removed).

防護等級

IP20 (PMC-24V100W1AJ)

電擊防護等級

Class I with Primary Earth connection

MTBF

> 700,000 hrs, as per per Telcordia SR-332 I/P: 115Vac, O/P: 100% load, Ta: 25°C

預計最長使用壽命

10 years (115Vac & 230Vac, 50% load @ 40°C)

電氣安全

SIQ Bauart : EN 62368-1
UL/cUL recognized : UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E191395)
CCC : GB4943.1
CB scheme : IEC 60950-1, IEC 62368-1 KC : KN32, KN35

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

電隔離

Input to Output: 3.0 KVac
Input to Ground: 1.5 KVac
Output to Ground: 0.5 KVac

安全特低電壓

SELV (IEC 60950-1)

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and
The Electromagnetic Compatibility Regulations 2016 No. 1091

輻射與傳導

Generic Standards: CISPR 32, EN/BS EN 55032, KN 32, FCC Title 47: Class B, GB 9254.1

抗擾度

Generic Standard: EN/BS EN 55024, KN 35

諧波電流排放

IEC/EN/BS EN 61000-3-2, Class A; GB 17625.1

電壓波動和閃變

IEC/EN/BS EN 61000-3-3
