PMC-12V035W1AA

平板型電源

PMC 系列

PMC-12V035W1AA

輸出電壓

12V

輸出功率

36W

輸出電流

輸入電壓範圍

85-264Vac

尺寸 (L x W x H)

98 x 97 x 38 mm

3.86” x 3.82” x 1.50”

重量

0.21 kg (0.46 lb)

亮點與特色

全球通用交流輸入範圍
輸入電壓全範圍功率不降額
鋁制底架全方位防腐蝕
MTBF > 700,000 hrs Telcordia SR-332
過壓 / 過電 / 過溫保護
可選 IP20 端子台

** 停產 **

PMC-12V035W1AA, PMC-12V035W1AJ

推薦機種: PMT-12V35W2BA

應用領域

平板型電源

PMC 系列

PMC-12V035W1AA

亮點與特色

全球通用交流輸入範圍
輸入電壓全範圍功率不降額
鋁制底架全方位防腐蝕
MTBF > 700,000 hrs Telcordia SR-332
過壓 / 過電 / 過溫保護
可選 IP20 端子台

** 停產 **

PMC-12V035W1AA, PMC-12V035W1AJ

推薦機種: PMT-12V35W2BA

輸出電壓

12V

輸出功率

36W

輸出電流

輸入電壓範圍

85-264Vac

尺寸

98 x 97 x 38 mm

3.86” x 3.82” x 1.50”

重量

0.21 kg (0.46 lb)

應用領域

資源下載

Datasheet

Uploaded on 28-Oct-2021

Manual

Uploaded on 30-Nov-2020


Uploaded on 18-Aug-2025

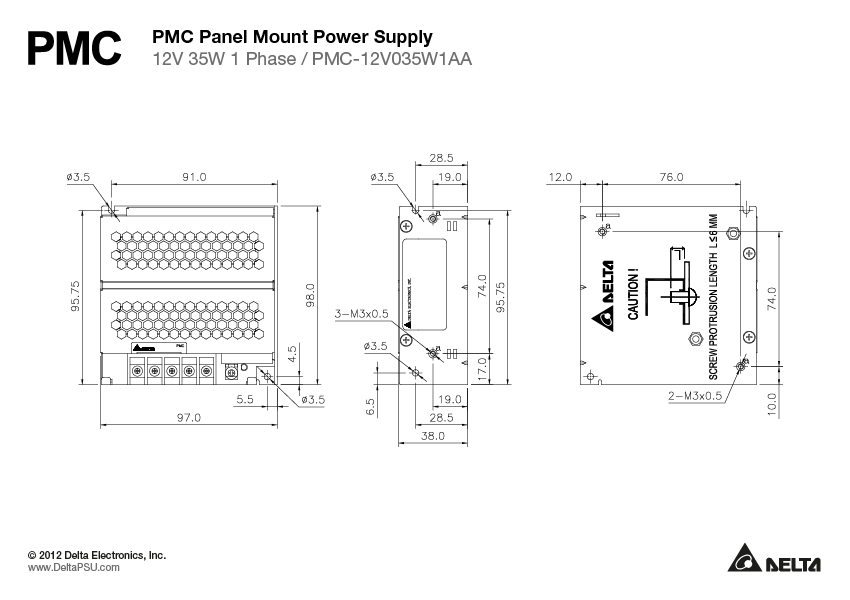

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

認證

Uploaded on 30-Nov-2020

CCC

Uploaded on 28-Feb-2023

Uploaded on 30-Nov-2020

EAC

Uploaded on 22-Apr-2020

Uploaded on 28-Oct-2021

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 28-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 30-Nov-2020

UKCA

Uploaded on 28-Oct-2021

Uploaded on 30-Nov-2020

GUI Software

Tech Specs

輸出電流

輸出電壓

12V

輸出電壓調整範圍

11-14Vdc

輸出功率

36W

線電壓調整率

< 0.5% typ. (@ 85-264Vac input, 100% load)

負載調整率

< 1% typ. (@ 85-264Vac input, 0 to 100% load)

紋波電壓

< 100mVpp

開機時間

< 2500ms @ nominal input (100% load)

保持時間

> 15ms @ 115Vac, > 80ms @ 230Vac (100% load)

動態回應

± 5% @ 85-264 Vac input, 0-100% load
(Slew Rate: 0.1 A/μs, 50% duty cycle @ 5 Hz to 1 KHz)

電容性負載啟動

6,600µF Max

額定輸入電壓

100-240Vac

輸入電壓範圍

85-264Vac

額定輸入頻率

50-60Hz

輸入頻率範圍

47-63Hz

額定直流輸入電壓

125-250Vdc

直流輸入電壓範圍

125-375Vdc

輸入電流

< 0.75A @ 115Vac,
< 0.5A @ 230Vac

100% 負載效率

> 85% @ 115Vac,
> 86% @ 230Vac

浪湧電流

< 30A @ 115Vac,
< 60A @ 230Vac

功率因數

Conform to EN61000-3-2

漏電流

< 1mA @ 240Vac

底架 / 外殼 Aluminium
指示燈 Green LED DC OK
冷卻方式 Convection
輸入端 -
輸出端 -
信號端 -
聲壓級（SPL） <40dBA
輸入/輸出端 -
信號 -
安裝導軌 -
電線 -
保護結構 -
端子台 -
重量 0.21 kg (0.46 lb)	尺寸 98 x 97 x 38 mm 3.86” x 3.82” x 1.50”

運行溫度

-10°C to +70°C

儲存溫度

-25°C to +85°C

功率降額

> 50°C de-rate power by 2.5% /°C

運行濕度

< 95% RH (Non-Condensing)

衝擊測試（非運行狀態）

IEC60068-2-27, 30G (300m/S²) for a duration of 18ms 3 times per direction, 18 times in total

振動測試（非運行狀態）

IEC60068-2-6, 10Hz to 150Hz @ 50m/S² (5G peak); 90 min per axis for all X, Y, Z direction

污染程度

過壓保護

16V +10% -5%, SELV output, Hicc-up Mode,
Non-Latching (Auto recovery)

超負載/過電保護

> 120% of rated load current, Hicc-up Mode, Non-Latching (Auto recovery)

過溫保護

< 75°C Surrounding Air Temperature @ 100% load,
Non-Latching (Auto-recovery)

短路保護

Hicc-up Mode, Non-Latching (Auto-recovery when the fault is removed).

防護等級

IP20 (available for PMC-12V035W1AJ only)

電擊防護等級

Class I with Primary Earth connection

MTBF

> 700,000 hrs, as per Telcordia SR-332
I/P: 115Vac, O/P: 100% load, Ta: 25°C

預計最長使用壽命

10 years (115Vac & 230Vac, 50% load @ 40°C)

電氣安全

TUV Bauart: EN 60950-1, EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E191395)
CB scheme: IEC 60950-1, IEC 62368-1
CCC: GB4943

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

電隔離

Input to Output: 3.0 KVac
Input to Ground: 1.5KVac
Output to Ground: 0.5KVac

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and
The Electromagnetic Compatibility Regulations 2016 No. 1091

K 60950-1 (for PMC-12V035W1AA)

輻射與傳導

CISPR32, EN/BS EN 55032, KN 32 (for PMC-12V035W1AA),
FCC Title 47: Class B, GB9254

抗擾度

EN/BS EN 55024, KN 35 (for PMC-12V035W1AA)

諧波電流排放

IEC/EN/BS EN 61000-3-2, Class A

電壓波動和閃變

IEC/EN/BS EN 61000-3-3
