Delta PMC-05V050W1AA 5V 50W 10A 平板型電源 PMC Series

資源下載

Datasheet

Uploaded on 01-Oct-2026

Manual

Uploaded on 01-Oct-2026


Uploaded on 01-Oct-2026

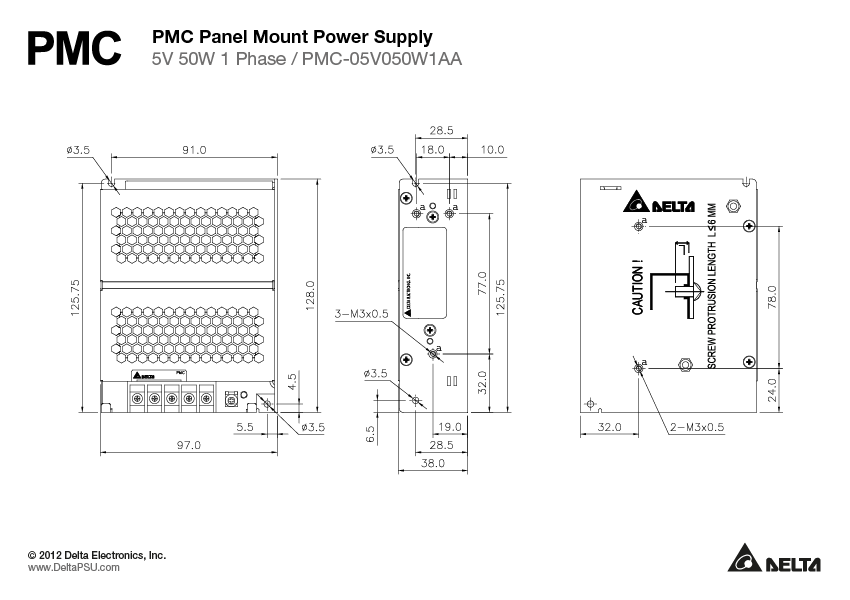

Mechanical Drawing

Uploaded on 01-Oct-2026

.DXF

Uploaded on 01-Oct-2026

.STP

Uploaded on 01-Oct-2026

認證

Uploaded on 01-Oct-2026

CCC

Uploaded on 01-Oct-2026

EAC

Uploaded on 01-Oct-2026

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 28-May-2024

SIQ

Uploaded on 01-Oct-2026

TSCA

Uploaded on 15-Nov-2023

UKCA

Uploaded on 01-Oct-2026

GUI Software

Tech Specs

輸出電流

10A

輸出電壓

輸出電壓調整範圍

4.75-5.5Vdc

輸出功率

50W

線電壓調整率

< 0.5% typ. (@ 85-264Vac input, 100% load)

負載調整率

< 1% typ. (@ 85-264Vac input, 0 to 100% load)

紋波電壓

< 70mVpp

開機時間

< 2500ms @ nominal input (100% load)

保持時間

> 15ms @ 115Vac,
> 80ms @ 230Vac (100% load)

動態回應

± 5% @ 85-264Vac input, 0-100% load (Slew Rate: 0.1A/μs, 50% duty cycle @ 5Hz to 1KHz)

電容性負載啟動

8,000µF Max

升壓時間

< 30ms @ nominal input (100% load)

額定輸入電壓

100-240Vac

輸入電壓範圍

85-264Vac

額定輸入頻率

50-60Hz

輸入頻率範圍

47-63Hz

額定直流輸入電壓

125-250Vdc

直流輸入電壓範圍

125-375Vdc

輸入電流

< 1.1A @ 115Vac,
< 0.7A @ 230Vac

100% 負載效率

> 79.0% @ 115Vac & 230Vac

浪湧電流

< 30A @ 115Vac,
< 65A @ 230Vac

功率因數

Conform to EN61000-3-2

漏電流

< 1mA @ 240Vac

功率損耗

0% load: < 1.2W @ 115Vac, < 1.7W @ 230Vac
100% load: < 13.2W @ 115Vac & 230Vac

底架 / 外殼 Aluminium
指示燈 Green LED DC OK
冷卻方式 Convection
輸入端 -
輸出端 -
信號端 -
聲壓級（SPL） <40dBA
輸入/輸出端 M3.5 x 5 Pins (Rated 300VAC/15A)
信號 -
安裝導軌 -
電線 AWG 20-14
保護結構 -
端子台 -
重量 0.26 kg (0.57 lb)	尺寸 128 x 97 x 38 mm 5.04” x 3.82” x 1.50”

運行溫度

-10°C to +70°C

儲存溫度

-25°C to +85°C

功率降額

> 50°C de-rate power by 2.5% /°C

運行濕度

5 to 95% RH (Non-Condensing)

衝擊測試（非運行狀態）

IEC60068-2-27, 30G (300m/S²) for a duration of 18ms 3 times per direction, 18 times in total

振動測試（非運行狀態）

IEC60068-2-6, 10Hz to 150Hz @ 50m/S² (5G peak); 20 min per axis for all X, Y, Z direction

運行高度

0 to 3,000 Meters (9,840 ft)

污染程度

碰撞試驗（運行狀態）

IEC 60068-2-29, Half Sine Wave: 10G for a duration of 11ms, 1,000 times per direction, 6,000 times in total

過壓類別

過壓保護

< 6.5V ±10%, SELV output, Hiccup Mode, Non-Latching (Auto-Recovery).

超負載/過電保護

> 120% of rated load current, Hicc-up Mode, Non-Latching (Auto recovery)

過溫保護

< 75°C Ambient Temp@ 100% load, Non-Latching (Auto-recovery)

短路保護

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

電擊防護等級

Class I with Primary Earth connection

MTBF

> 700,000 hrs. as per Telcordia SR-332
I/P: 115Vac, O/P: 100% load, Ta: 25°C

預計最長使用壽命

10 years (115Vac & 230Vac, 50% load @ 40°C)

電氣安全

SIQ Bauart : EN 60950-1, EN 62368-1
UL/cUL recognized : UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E191395)
CB scheme : IEC 60950-1, IEC 62368-1
KC : K 60950-1
CCC : GB/T9254, GB17625.1 and GB4943.1 仅适用于海拔 2000m 以下地区安全使用

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

電隔離

Input to Output: 3.0 KVac
Input to Ground: 1.5KVac
Output to Ground: 0.5 KVac

安全特低電壓

SELV (IEC 60950-1)

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and
The Electromagnetic Compatibility Regulations 2016 No. 1091

K 60950-1

輻射與傳導

(CE & RE)
Generic Standards: CISPR32, EN/BS EN 55032, KN32, FCC Title 47: Class B

抗擾度

Generic Standards: EN/BS EN 55024, KN35

諧波電流排放

IEC/EN/BS EN 61000-3-2, Class A

電壓波動和閃變

IEC/EN/BS EN 61000-3-3
