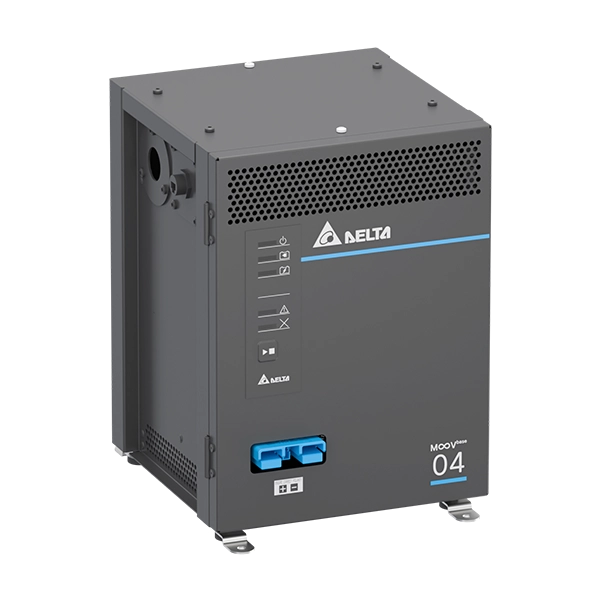

MOOVbase 04 Multi-Port 48V

Modular Charging System

MOOVbase Multi-Port 系列

MOOVbase 04 Multi-Port 48V

輸出電壓

36V,48V

輸出功率

4050W

輸出電流

26A,26A,26A

輸入電壓範圍

100-240 Vac

尺寸 (L x W x H)

290 x 290 x 402 mm

11.42” x 11.42” x 15.83”

重量

16.2 kg (35.71 lb)

亮點與特色

Simultaneous Autonomous Charging of Up to 3 Vehicles
- Our Multi-Port Charger allows you to charge up to three robotic vehicles at the same time from a single AC connection. This significantly reduces the number of charge points needed, saving both space and resources while keeping your fleet fully powered.
Simplified Installation
- With only one AC line, a single data connection, and a single box to set up, this charger minimizes the complexity of your installation. It's designed to be straightforward, efficient, and easy to deploy, reducing the need for additional equipment and saving time during setup.
Maximized Uptime Through Fast Charging
- Charging times are critical when it comes to maximizing vehicle uptime. With the Delta Multi-Port Charger, you can charge your vehicles quickly and safely. The system regulates the charging process to ensure a fast charge without overheating the batteries, ensuring that your fleet is ready to get back to work as soon as possible.
Flexible Charging Solutions
- The charger can be controlled directly by the vehicle, your Fleet Management System (FMS), or an Energy Management System (EMS). Whether you need a quick 10-minute booster charge or a full charge over an hour, this charger adapts to meet your needs.
- It can also charge through contacts or floating connectors on a dock, offering versatility in installation and use.
Reliable and Redundant
- With redundant charge points, your vehicles will always have access to power when they need it. Our chargers meet all the regulatory and safety requirements for both North America and Europe, in addition to our internal standards, ensuring reliability and safety.

應用領域

Modular Charging System

MOOVbase Multi-Port 系列

MOOVbase 04 Multi-Port 48V

亮點與特色

Simultaneous Autonomous Charging of Up to 3 Vehicles
- Our Multi-Port Charger allows you to charge up to three robotic vehicles at the same time from a single AC connection. This significantly reduces the number of charge points needed, saving both space and resources while keeping your fleet fully powered.
Simplified Installation
- With only one AC line, a single data connection, and a single box to set up, this charger minimizes the complexity of your installation. It's designed to be straightforward, efficient, and easy to deploy, reducing the need for additional equipment and saving time during setup.
Maximized Uptime Through Fast Charging
- Charging times are critical when it comes to maximizing vehicle uptime. With the Delta Multi-Port Charger, you can charge your vehicles quickly and safely. The system regulates the charging process to ensure a fast charge without overheating the batteries, ensuring that your fleet is ready to get back to work as soon as possible.
Flexible Charging Solutions
- The charger can be controlled directly by the vehicle, your Fleet Management System (FMS), or an Energy Management System (EMS). Whether you need a quick 10-minute booster charge or a full charge over an hour, this charger adapts to meet your needs.
- It can also charge through contacts or floating connectors on a dock, offering versatility in installation and use.
Reliable and Redundant
- With redundant charge points, your vehicles will always have access to power when they need it. Our chargers meet all the regulatory and safety requirements for both North America and Europe, in addition to our internal standards, ensuring reliability and safety.

輸出電壓

36V,48V

輸出功率

4050W

輸出電流

26A,26A,26A

輸入電壓範圍

100-240 Vac

尺寸

290 x 290 x 402 mm

11.42” x 11.42” x 15.83”

重量

16.2 kg (35.71 lb)

應用領域

Tech Specs

輸出電流

26A,26A,26A

輸出電壓

36V,48V

輸出電壓範圍

12-70Vdc

輸出電壓調整範圍

12-70 Vdc

輸出功率

4050W

輸出電流調整範圍

0-26A

最大輸出電壓

70Vdc

額定輸入電壓

100-240 Vac

輸入電壓範圍

100-240 Vac

底架 / 外殼 -
指示燈 -
冷卻方式 -
輸入端 -
輸出端 -
信號端 -
聲壓級（SPL） -
輸入/輸出端 -
信號 -
安裝導軌 -
電線 -
保護結構 -
端子台 -
重量 16.2 kg (35.71 lb)	尺寸 290 x 290 x 402 mm 11.42” x 11.42” x 15.83”

(/3) Item(s) selected

MOOVbase 04 Multi-Port 48V

Modular Charging System

MOOVbase Multi-Port 系列

MOOVbase 04 Multi-Port 48V

輸出電壓

輸出功率

輸出電流

輸入電壓範圍

尺寸 (L x W x H)

重量

亮點與特色

應用領域

MOOVbase 04 Multi-Port 48V

MOOVbase 04 Multi-Port 48V

Modular Charging System

MOOVbase Multi-Port 系列

MOOVbase 04 Multi-Port 48V

亮點與特色

輸出電壓

輸出功率

輸出電流

輸入電壓範圍

尺寸

重量

應用領域

資源下載

資源下載

Tech Specs

Tech Specs

針對此產品有任何疑問?

訂閱電子報

相關產品

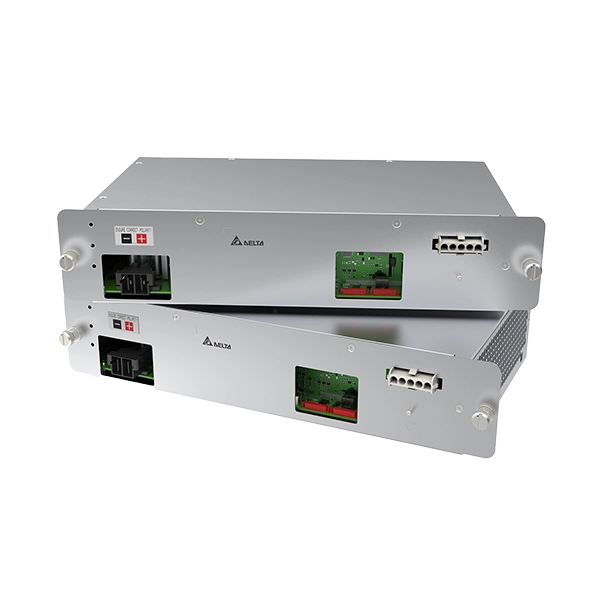

MOOVbase Power Module 1350W/24V

輸出電壓

輸出功率

輸出電流

輸入電壓範圍

尺寸 (L x W x H)

232 x 175 x 43.6 mm

9.13” x 6.89” x 1.72”

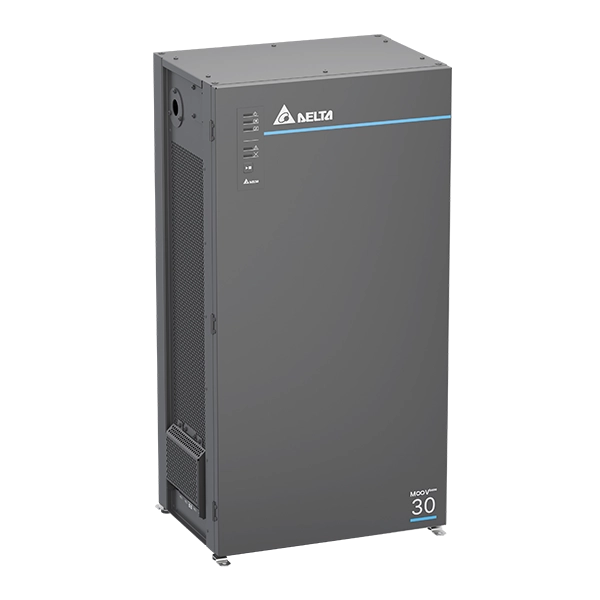

MOOVbase 30 48V/US
