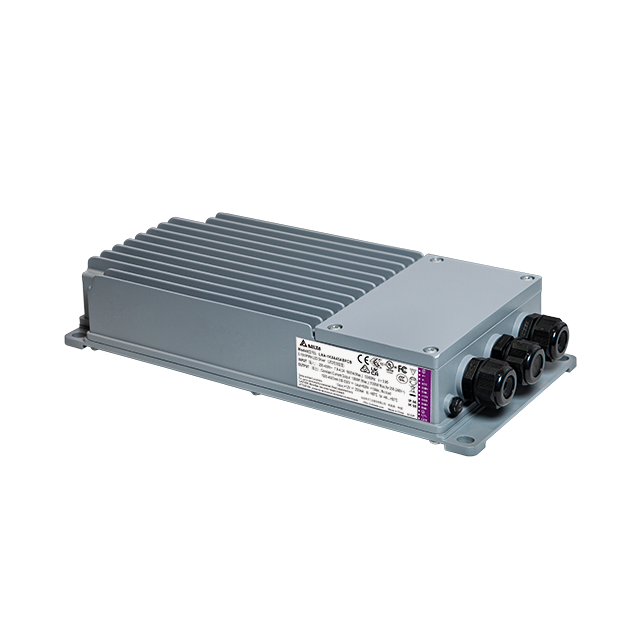

LNA-1K8A45ABHGB

LED電源

LNA ARENA SPORT 系列

LNA-1K8A45ABHGB

輸出電壓

150-550V

輸出功率

1800W

輸出電流

輸入電壓範圍

180-528Vac

尺寸 (L x W x H)

345 x 152 x 62 mm

13.58” x 5.98” x 2.44”

重量

5.4 kg (11.90 lb)

亮點與特色

Single channel programmable maximum 1,800W
Input voltage range: 187-528 Vac
Ultra-high efficiency up to 98%
Programmable output current range 1.5-4.5A
Wide output voltage range 150-550Vdc
0-10V/PWM/resistor, DALI-2 & D4i and RDM/DMX 2 in 1 control interfaces
Very low current ripple (typ.1%) suitable for HDTV broadcasting
Wide dimming range 0.1-100%
After-glow effect free
Constant Lumen Output (CLO)
Smart Timer Dimming (STD)
Strobe effects up to 33 fps (DMX version)
High-accuracy integrated power metering
Input surge protection: DM 10kV / CM 15kV
Max remote distance 300 meters
Suitable for DRY / DAMP / WET locations
Wireless programming (NFC)

應用領域

LED電源

LNA ARENA SPORT 系列

LNA-1K8A45ABHGB

亮點與特色

Single channel programmable maximum 1,800W
Input voltage range: 187-528 Vac
Ultra-high efficiency up to 98%
Programmable output current range 1.5-4.5A
Wide output voltage range 150-550Vdc
0-10V/PWM/resistor, DALI-2 & D4i and RDM/DMX 2 in 1 control interfaces
Very low current ripple (typ.1%) suitable for HDTV broadcasting
Wide dimming range 0.1-100%
After-glow effect free
Constant Lumen Output (CLO)
Smart Timer Dimming (STD)
Strobe effects up to 33 fps (DMX version)
High-accuracy integrated power metering
Input surge protection: DM 10kV / CM 15kV
Max remote distance 300 meters
Suitable for DRY / DAMP / WET locations
Wireless programming (NFC)

輸出電壓

150-550V

輸出功率

1800W

輸出電流

輸入電壓範圍

180-528Vac

尺寸

345 x 152 x 62 mm

13.58” x 5.98” x 2.44”

重量

5.4 kg (11.90 lb)

應用領域

資源下載

Datasheet

Uploaded on 08-Jun-2026

Manual

Uploaded on 08-Jun-2026


Uploaded on 08-Jun-2026

Mechanical Drawing

Uploaded on 08-Jun-2026

.DXF

Uploaded on 08-Jun-2026

認證

Uploaded on 08-Jun-2026

CCC

Uploaded on 08-Jun-2026

ENEC

Uploaded on 08-Jun-2026

RCM

Uploaded on 08-Jun-2026

UKCA

Uploaded on 08-Jun-2026

GUI Software

GUI Program

Uploaded on 17-Jan-2025

Tech Specs

輸出電流

輸出電壓

150-550V

輸出電壓範圍

150-550Vdc

輸出功率

1800W

輸出電流調整範圍

0.7-2A

最大輸出電壓

600Vdc

額定輸入電壓

200-480Vac

輸入電壓範圍

180-528Vac

額定輸入頻率

50/60Hz

輸入頻率範圍

47-63Hz

輸入電流

7.2A at 220Vac, 25°C, 1500W output
4.0A At 480Vac, 25°C, 1800W output

輸入功率（備用電源模式）

0.5W at 230Vac/50Hz, Dim OFF,
in compliance with Erp(EU) 2019/2020

100% 負載效率

97% at 220Vac, Io=3A @ Pout=1500W
98.05% at 400Vac, Io=3.27A @ Pout=1800W

浪湧電流

14A at 220Vac，10%Ipeak to 10% Ipeak: <5 ms
25A at 480Vac，480Vac, 10%Ipeak to 10% Ipeak: <5ms compliant with NEMA410-2015

功率因數

0.99 typ. at 220Vac/50Hz, Pout=1500W
0.99 typ. at 400Vac/50Hz, Pout=1800W

諧波失真總量

10% at 220Vac/50Hz, Pout=1500W output
15% at 400Vac/50Hz, Pout=1800W

底架 / 外殼 Aluminum alloy case, dark gray
指示燈 -
冷卻方式 Natural Convection
輸入端 L1/L, L2/N, PE
輸出端 PE, V+, V-, NTC,
信號端 -
聲壓級（SPL） < 24dBA
輸入/輸出端 -
信號 -
安裝導軌 -
電線 -
保護結構 -
端子台 -
重量 5.4 kg (11.90 lb)	尺寸 345 x 152 x 62 mm 13.58” x 5.98” x 2.44”

運行溫度

-40 ~+50°C

儲存溫度

-40°C to +85°C

運行濕度

10% to 90% RH (Non-Condensing)

振動測試（非運行狀態）

IEC 60068-2-6, Random: 5 Hz to 10 Hz (1G); 30 min per axis for all X, Y, Z direction

儲藏濕度

5% to 95% RH (Non-Condensing)

防護等級

IP66

MTBF

475khrs. at Ta=+45°C Telcordia SR-332

預計最長使用壽命

50,000 hours applicable for 277Vac to 480Vac(50/60Hz)@ 1800W and
220 to 240Vac(50Hz)@ 1500W, Ta=45℃(Tcase=80℃),

Safety Certificate

ENEC:
EN 61347-2-13:2015, EN 61347-1-2015/A1:2021
EN 61347-2-13:2014, EN 61347-2-13:2014/A1:2017
EN IEC 62384:2020

CB report: EN 61347-1:2015, EN 61347-1:2015/A1:2021
EN 61347-1:2015/AMD1:2017 IEC 61347-2-13:2014, IEC 61347-2-13:2014/AMD1:2016
UL8750 2nd Ed., CSA C22.2 No.250.13, 5th Ed.

RCM: AS/NZS 61347.1:2016+A1, AS 61347.2.13:2018
CCC: GB 19510.1, GB 19510.14

CE Declaration of Conformity.

UKCA

BS EN 61347-2-13: 2014+A1:2017

輻射與傳導

Radiated Emission EN55015, GB/T17743, FCC 47CFR Part 15 Subpart B, Class B, ANSI C63.4, ICES-005

諧波電流排放

IEC 61000-3-2, GB 17625.1

電壓波動和閃變

EN61000-3-3

ESD 抗擾度

EN 61000-4-2, IEC/EN 61547

EFT

EN 61000-4-4

電湧

(AC Mains)
IEC 61000-4-4, IEC/EN 61547

磁場

EN 61000-4-3, IEC/EN 61547

電壓驟降

EN 61000-4-11, IEC/EN 61547
