Delta PJT-12V65WBAA 12V 60W 5A 基板型電源 PJT Series

資源下載

Datasheet

Uploaded on 17-Dec-2025


Uploaded on 16-Dec-2025

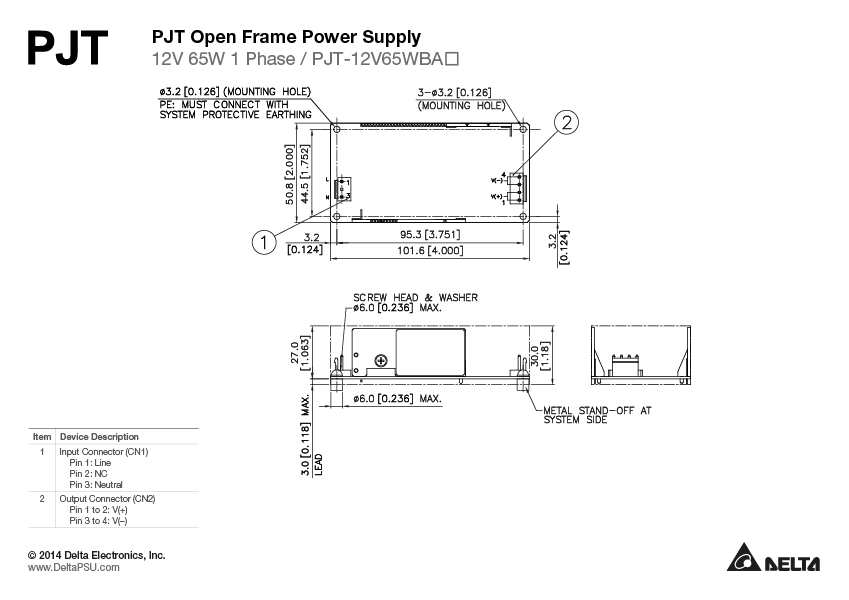

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

認證

Uploaded on 18-Jan-2023

CCC

Uploaded on 16-Mar-2021

CE & UKCA

Uploaded on 23-Jul-2021

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 28-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 27-Nov-2020

Uploaded on 22-Jan-2022

GUI Software

Tech Specs

輸出電流

輸出電壓

12V

輸出功率

60W

線電壓調整率

± 0.5% @ 115Vac & 230Vac

負載調整率

± 1.0% @ 115Vac & 230Vac

紋波電壓

< 120mVpp

開機時間

3000ms typ. (100% load) @115Vac
1500ms typ. (100% load) @230Vac

保持時間

16ms typ. (100% load) @115Vac
80ms typ. (100% load) @230Vac

動態回應

± 5% @ 50-100% load
(Slew Rate: 0.1A/µS)

電容性負載啟動

4,000uF Max

額定輸入電壓

100-240Vac

輸入電壓範圍

90-264Vac

額定輸入頻率

50-60Hz

輸入頻率範圍

47-63Hz

輸入電流

< 1.50A typ. @ 115Vac

100% 負載效率

86.0% typ. @ 115Vac, 86.5% typ. @ 230Vac

浪湧電流

30A typ. @ 115Vac, 60A typ. @ 230Vac

漏電流

0.1mA @ 240Vac

底架 / 外殼 -
指示燈 -
冷卻方式 Convection
輸入端 -
輸出端 -
信號端 -
聲壓級（SPL） -
輸入/輸出端 -
信號 -
安裝導軌 -
電線 AWG 22-18
保護結構 -
端子台 -
重量 0.13 kg (0.29 lb)	尺寸 101.6 x 50.8 x 30 mm 4.00” x 2.00” x 1.18”

振動測試（運行狀態）

IEC 60068-2-6, Sine Wave: 10Hz to 150Hz @ 25m/S² (2.5G); 10 min per cycle, 90 min per axis for all X, Y, Z direction

運行溫度

-10°C to +70°C

儲存溫度

-40°C to +85°C

功率降額

> 50°C de-rate power by 2.5% / °C

運行濕度

10 to 95% RH (Non-Condensing)

衝擊測試（非運行狀態）

IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11ms, 3 shocks for each 3 directions

運行高度

0 to 5,000 Meters (16,400 ft.)

過壓保護

13.2-18.0V, Latch Mode

超負載/過電保護

> 125% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)

過溫保護

Non-Latching (Auto-Recovery)

短路保護

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

電擊防護等級

Class I with Primary Eearth connection

MTBF

> 700,000 hrs. as per Telcordia SR-332

電氣安全

TUV Bauart: EN 60950-1, EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E131881), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E131881), CCC, BSMI
CB scheme: IEC 60950-1, IEC 62368-1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

電隔離

Input to Output: 3.0KVac
Input to Ground: 2.0KVac
Output to Ground: 0.5KVac

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

輻射與傳導

(CE&RE)
CISPR 32, EN/BS EN 55032, FCC Title 47: Class B

抗擾度

EN/BS EN 55024

電壓波動和閃變

IEC/EN/BS EN 61000-3-3

(/3) Item(s) selected

PJT-12V65WBAA

基板型電源

PJT 系列
