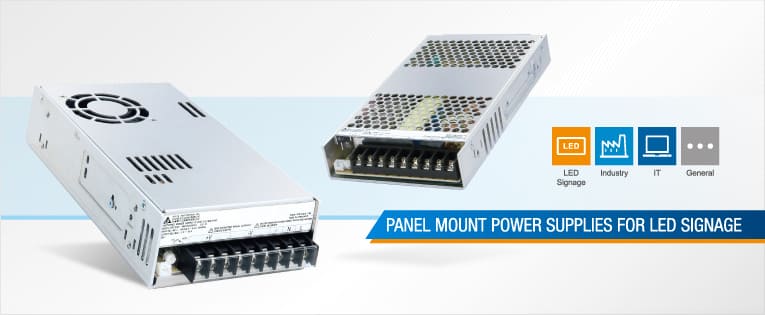

Delta Electronics offers different types of highly reliable panel mount power supplies for a wide variety of LED signage applications. The PMR and PMF series feature high MTBF and corrosion resistant aluminium body. The PMF series comes with built-in active PFC and remote ON/OFF function suitable for centralized control system. Whereas the PMR series is suitable for installation within 1U rack height. For system that requires basic functionality but equally reliable power supplies, the highly affordable PMT series provides not only overvoltage and overcurrent protections but also other excellent specifications bigger than its price tag. All series come with two different connector options (Terminal Block and Front Face).
The panel mount power supply series for LED signage are:
| Series | Model Name | PFC | Output Voltage | Output Current | Output Power | Input Voltage Range | Dimensions (L x W x D) |
|---|---|---|---|---|---|---|---|
| PMR | PMR-4V320WC□A | ● | 4.2V | 60.0A | 252W | 88-264Vac | 215 x 115 x 30 mm |
| PMR-4V320WD□A | ● | ||||||
| PMR-5V320WC□A | ● | 5V | 60.0A | 300W | 88-264Vac | 215 x 115 x 30 mm | |
| PMR-5V320WD□A | ● | ||||||
| PMF | PMF-4V320WCG□ | ● | 4.2V | 55.0A | 231W | 85-264Vac | 215 x 115 x 50 mm |
| PMF-4V320WCA□ | ● | ||||||
| PMF-5V320WCG□ | ● | 5V | 55.0A | 275W | 85-264Vac | 215 x 115 x 50 mm | |
| PMF-5V320WCA□ | ● | ||||||
| PMT | PMT-4V350W1AM□ | | 4.2V | 60.0A | 252W | 90-132Vac, 180-264Vac (Selectable by Switch) | 215 x 115 x 50 mm |
| PMT-4V350W1AN□ | | ||||||
| PMT-5V350W1AM□ | | 5V | 60.0A | 300W | 90-132Vac, 180-264Vac (Selectable by Switch) | 215 x 115 x 50 mm | |
| PMT-5V350W1AN□ | |
Model Numbering
| PM | R- | XXV | XXXW | □ | □ | □ |
|---|---|---|---|---|---|---|
| Panel Mount | Product Series R - Standard Rack Type Series (1U) | Output Voltage | Output Power | Package Type C - Enclosed with Fan D - Enclosed without Fan | Connector Type A - Terminal Block B - Terminal Block (Parallel Operation)* G - Front Face** C - Front Face (Parallel Operation)* | Variable A - Coating |
| PM | F- | XXV | XXXW | □ | □ | □ |
|---|---|---|---|---|---|---|
| Panel Mount | Product Series F - PFC Series | Output Voltage | Output Power | Package Type C - Enclosed | Connector Type G - Front Face A - Terminal Block** | Variable B - No Remote R - With Remote** |
| PM | T- | XXV | XXXW | 1 | A | □ | □ |
|---|---|---|---|---|---|---|---|
| Panel Mount | Product Series T - Enclosed | Output Voltage | Output Power | Phase Input Single Phase | No PFC | Connector Type M - Terminal Block N - Front Face** | Blank - Without connection A - With connector cover B - Conformal Coating |
* Options for Enclosed without Fan (PMR-□V320WDBA and PMR-□V320WDCA)
** Options
** Options
New models are introduced on a regular basis. For more information or enquiries, please do not hesitate to contact your local Delta Electronics distributor or visit www.DeltaPSU.com.
