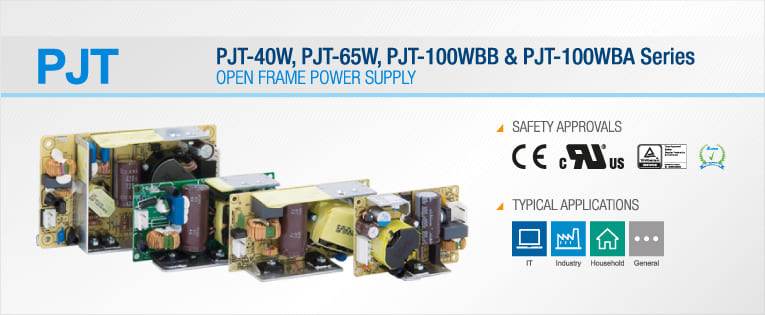

Delta is launching the latest series in its industrial power supply family- the PJT open frame power supply series. The PJT series offers choices of 12V, 15V, 18V and 24V
nominal output voltages in 3 different output power ratings. These
single output products are designed with small standard industrial foot
prints at 2” x 3” (PJT-40W), 2” x 4” (PJT-65W, PJT-100WBB) and 3“ x 5” (PJT-100WBA). The highly efficient convection cooling designs enable optimum thermal management for high power efficiency.
The PJT series of products can operate from -10°C to 70°C across the entire input voltage range of 90 to 264Vac and are certified for safety standard according to IEC/EN/UL 60950-1 and for EMI standard according to EN 55022, Class B.
Highlights & Features
- Universal AC input voltage
- Standard industrial foot print
- Low leakage current < 0.1mA
- Convection cooled operating temperature range from -10°C to 70°C
- High MTBF > 700,000 hrs as per Telcordia SR-332
- Multiple connector source options
View Product Details
THE PJT SERIES ARE NOW AVAILABLE FOR SHIPMENT.
New models are introduced on a regular basis. For more information or enquiries, please do not hesitate to contact your local Delta Electronics distributor or visit www.DeltaPSU.com.
