An enhanced feature set, includes a 5 Volt/0.5 amp standby output, remote on/off, remote sense, and a power good signal that are included as part of the standard product.
The design, which has protection against shock compliant with 2XMOPP and Type BF requirements, has both medical (with risk report available), and ITE safety approvals, including cURus (US & Canada)/TUV/GB (China); plus, CB certificates with all national deviations. Full compliance with RoHS Directive 2011/65/EU for environmental protection is included.

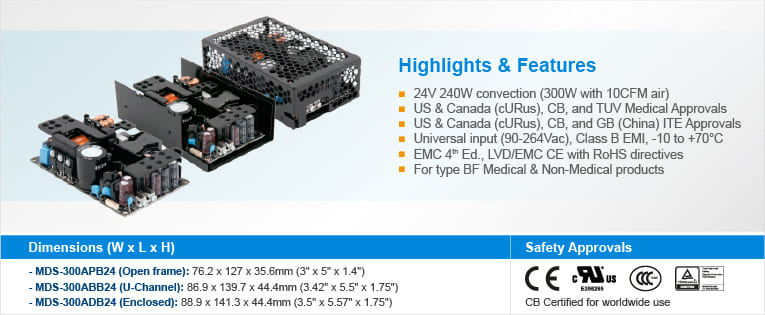

The unit comes in a standard 3" x 5" footprint, with height suitable for 1U applications. Robust terminals, capable of multiple connections of the main output to the end product. U-channel, and enclosed assemblies are available options.
Documents for this product, can be found at www.DeltaPSU.com and search in the Standard Products drop down menu for Medical » Internal » 24V » 151-300W, and click on part number MDS-300APB24. Direct access to the data sheet can be found at the following link.
