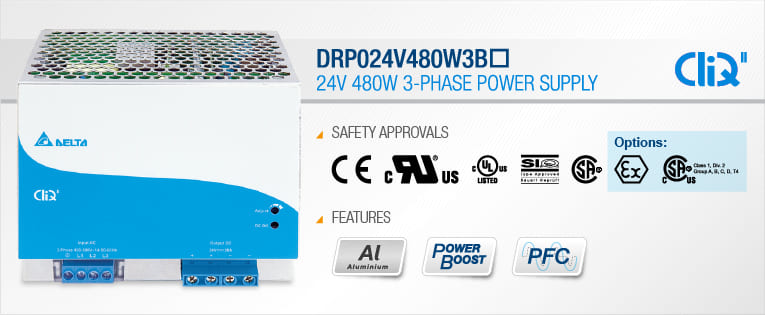

Delta Electronics extends the 3-phase models for its CliQ II DIN Rail Power Supply series with a 480W product offering 24V output voltage. The DRP024V480W3BN is encased in a full aluminium body that can withstand shock (30G) and
vibration (3G) according to IEC 60068-2 standard and operates over a
wide temperature range from -25°C to +80°C.
The
excellent design enables operation over a wide input range 3-phase at
320Vac to 600Vac or 2-phase at 360Vac to 600Vac. There will be no power
de-rating throughout the entire input range. In this model, there is
150% Power Boost lasting for 5 seconds and at 200% lasting for 2
seconds. Like the rest of the models in the CliQ family, conformal
coating is applied on the PCBAs to protect against dust and chemical
pollutants. Hazardous Locations approval for ATEX and Class I, Div 2 are
available as options.
Highlights & Features
- Worldwide AC input voltage range without power de-rating
3 x 320Vac – 600Vac (3-Phase) or 2 x 360Vac – 600Vac (2-Phase) - Power Boost of 150% for 5 seconds and 200% for 2 seconds
- Full corrosion resistant Aluminium chassis
- Conforms to harmonic current IEC/EN 61000-3-2, Class A
- Conformal coating on PCBA to protect against chemical and dust pollutants
- Hazardous Locations approval to ATEX and Class I, Div 2 available as options
AVAILABLE FOR SHIPMENT FROM AUGUST 2013 ONWARDS.
New models are introduced on a regular basis. For more information or enquiries, please do not hesitate to contact your local Delta Electronics distributor or visit www.DeltaPSU.com.
