MOOVbase 04 Multi-Port 24V

Modular Charging System

MOOVbase Multi-Port Seri

MOOVbase 04 Multi-Port 24V

Çıkış Voltajı

24V

Çıkış Gücü

4050W

Çıkış Akımı

45A,45A,45A

Giriş Voltajı Aralığı

100-240 Vac

Boyutlar (L x W x H)

290 x 290 x 402 mm

11.42” x 11.42” x 15.83”

Ünite Ağırlığı

16.2 kg (35.71 lb)

Öne Çıkanlar ve Özellikler

Simultaneous Autonomous Charging of Up to 3 Vehicles
- Our Multi-Port Charger allows you to charge up to three robotic vehicles at the same time from a single AC connection. This significantly reduces the number of charge points needed, saving both space and resources while keeping your fleet fully powered.
Simplified Installation
- With only one AC line, a single data connection, and a single box to set up, this charger minimizes the complexity of your installation. It's designed to be straightforward, efficient, and easy to deploy, reducing the need for additional equipment and saving time during setup.
Maximized Uptime Through Fast Charging
- Charging times are critical when it comes to maximizing vehicle uptime. With the Delta Multi-Port Charger, you can charge your vehicles quickly and safely. The system regulates the charging process to ensure a fast charge without overheating the batteries, ensuring that your fleet is ready to get back to work as soon as possible.
Flexible Charging Solutions
- The charger can be controlled directly by the vehicle, your Fleet Management System (FMS), or an Energy Management System (EMS). Whether you need a quick 10-minute booster charge or a full charge over an hour, this charger adapts to meet your needs.
- It can also charge through contacts or floating connectors on a dock, offering versatility in installation and use.
Reliable and Redundant
- With redundant charge points, your vehicles will always have access to power when they need it. Our chargers meet all the regulatory and safety requirements for both North America and Europe, in addition to our internal standards, ensuring reliability and safety.

Uygulamalar

Modular Charging System

MOOVbase Multi-Port Seri

MOOVbase 04 Multi-Port 24V

Öne Çıkanlar ve Özellikler

Simultaneous Autonomous Charging of Up to 3 Vehicles
- Our Multi-Port Charger allows you to charge up to three robotic vehicles at the same time from a single AC connection. This significantly reduces the number of charge points needed, saving both space and resources while keeping your fleet fully powered.
Simplified Installation
- With only one AC line, a single data connection, and a single box to set up, this charger minimizes the complexity of your installation. It's designed to be straightforward, efficient, and easy to deploy, reducing the need for additional equipment and saving time during setup.
Maximized Uptime Through Fast Charging
- Charging times are critical when it comes to maximizing vehicle uptime. With the Delta Multi-Port Charger, you can charge your vehicles quickly and safely. The system regulates the charging process to ensure a fast charge without overheating the batteries, ensuring that your fleet is ready to get back to work as soon as possible.
Flexible Charging Solutions
- The charger can be controlled directly by the vehicle, your Fleet Management System (FMS), or an Energy Management System (EMS). Whether you need a quick 10-minute booster charge or a full charge over an hour, this charger adapts to meet your needs.
- It can also charge through contacts or floating connectors on a dock, offering versatility in installation and use.
Reliable and Redundant
- With redundant charge points, your vehicles will always have access to power when they need it. Our chargers meet all the regulatory and safety requirements for both North America and Europe, in addition to our internal standards, ensuring reliability and safety.

Çıkış Voltajı

24V

Çıkış Gücü

4050W

Çıkış Akımı

45A,45A,45A

Giriş Voltajı Aralığı

100-240 Vac

Boyutlar

290 x 290 x 402 mm

11.42” x 11.42” x 15.83”

Ünite Ağırlığı

16.2 kg (35.71 lb)

Uygulamalar

Teknik Özellikler

Output Current

45A,45A,45A

Output Voltage

24V

Output Voltage Range

9-35Vdc

Output Voltage Adjustment Range

9-35 Vdc

Output Power

4050W

Output Current Adjustment Range

0-45A

Max Output Voltage

35Vdc

Nominal Input Voltage

100-240 Vac

Input Voltage Range

100-240 Vac

Case Chassis / Cover -
Indicator -
Cooling System -
Input Terminal -
Output Terminal -
Signal Terminal -
Noise Sound Pressure Level (SPL) -
Input/Output Terminal -
Signal -
Mounting Rail -
Wire -
Protection Structure -
Terminal -
Ünite Ağırlığı 16.2 kg (35.71 lb)	Boyutlar 290 x 290 x 402 mm 11.42” x 11.42” x 15.83”

(/3) Seçili öge(ler)

MOOVbase 04 Multi-Port 24V

Modular Charging System

MOOVbase Multi-Port Seri

MOOVbase 04 Multi-Port 24V

Çıkış Voltajı

Çıkış Gücü

Çıkış Akımı

Giriş Voltajı Aralığı

Boyutlar (L x W x H)

Ünite Ağırlığı

Öne Çıkanlar ve Özellikler

Uygulamalar

MOOVbase 04 Multi-Port 24V

MOOVbase 04 Multi-Port 24V

Modular Charging System

MOOVbase Multi-Port Seri

MOOVbase 04 Multi-Port 24V

Öne Çıkanlar ve Özellikler

Çıkış Voltajı

Çıkış Gücü

Çıkış Akımı

Giriş Voltajı Aralığı

Boyutlar

Ünite Ağırlığı

Uygulamalar

İndir

İndir

Teknik Özellikler

Teknik Özellikler

Bu ürün için desteğe mi ihtiyacınız var?

Bültenimize abone olun

İlgili Ürünler

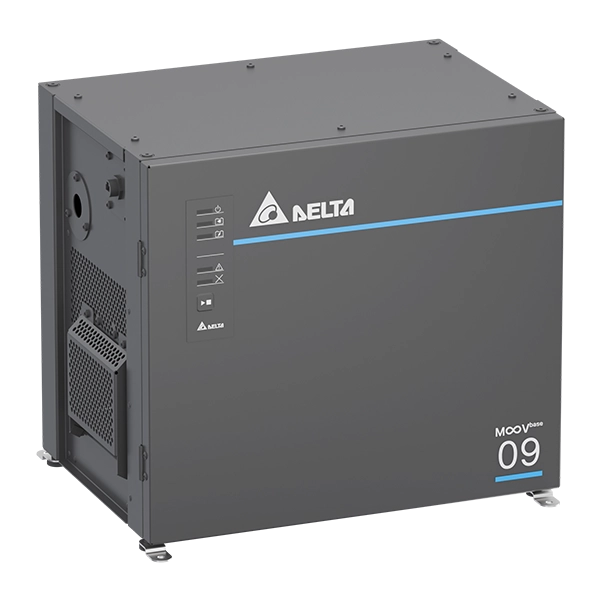

MOOVbase 09 48V/EU
