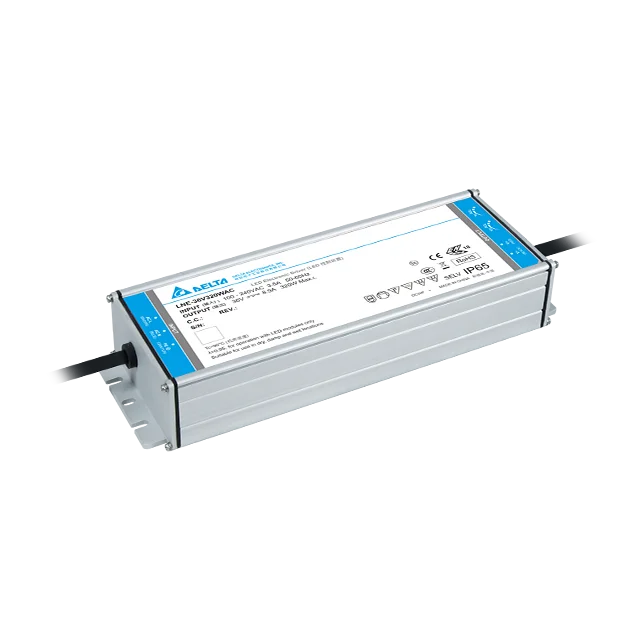

LNE-36V320WACA

LED电源

LNE 系列

LNE-36V320WACA

输出电压

36V

输出功率

320W

输出电流

8.9A

输入电压范围

90-264Vac

尺寸 (L x W x H)

252 x 90 x 43.8 mm

9.92” x 3.54” x 1.72”

重量

1.70 kg (3.75 lb)

亮点与特色

Meet ErP Directive (2009/125/EC) for International models
International AC voltage options
Up to 94.5% efficiency
6kV common mode & 4kV differential mode surge immunity
Active PFC. Meets IEC/EN 61000-3-2, Class C
Adjustable voltage & current; dimming options available
IP65 or IP67 options for indoor and outdoor applications

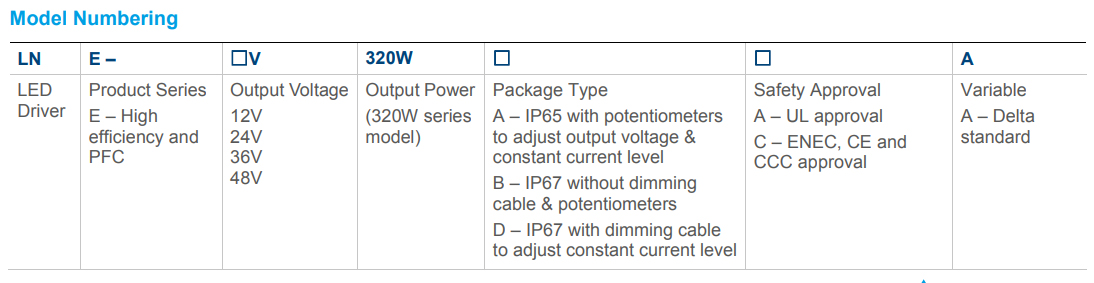

Optional Models

型号	Description

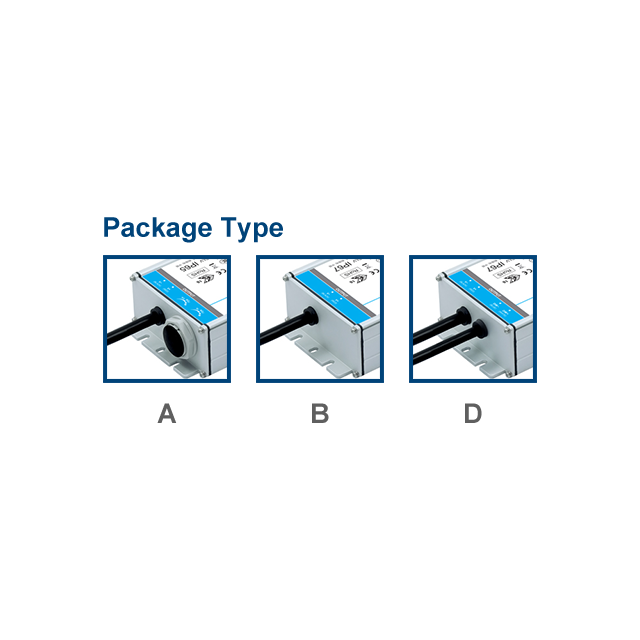

LNE-36V320WBCA	IP67, dimming cable & potentiometers, ENEC/CE/CCC approval
LNE-36V320WDCA	IP67, dimming cable, ENEC/CE/CCC approval

应用领域

LED电源

LNE 系列

LNE-36V320WACA

亮点与特色

Meet ErP Directive (2009/125/EC) for International models
International AC voltage options
Up to 94.5% efficiency
6kV common mode & 4kV differential mode surge immunity
Active PFC. Meets IEC/EN 61000-3-2, Class C
Adjustable voltage & current; dimming options available
IP65 or IP67 options for indoor and outdoor applications

输出电压

36V

输出功率

320W

输出电流

8.9A

输入电压范围

90-264Vac

尺寸

252 x 90 x 43.8 mm

9.92” x 3.54” x 1.72”

重量

1.70 kg (3.75 lb)

应用领域

Optional Models

型号	Description
LNE-36V320WBCA	IP67, dimming cable & potentiometers, ENEC/CE/CCC approval
LNE-36V320WDCA	IP67, dimming cable, ENEC/CE/CCC approval

资源下载

Datasheet

Uploaded on 09-Jun-2020

Manual

Uploaded on 22-Apr-2020


Uploaded on 28-Mar-2025

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

认证

Uploaded on 22-Apr-2020

CCC

Uploaded on 22-Apr-2020

ENEC

Uploaded on 22-Apr-2020

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

Uploaded on 22-Apr-2020

GUI Software

Tech Specs

输出电流

8.9A

输出电压

36V

输出电压调整范围

33.0-40.0V

输出功率

320W

输出电流调整范围

4.45-8.9A

线电压调整率

± 0.5% (@ 90-264Vac input)

负载调整率

± 0.5% (@ 90-264Vac input, 0-95% load)

纹波电压

< 250mVpp

开机时间

< 1000ms @ 115Vac
< 500ms @ 230Vac

保持时间

16ms typ. @ 115Vac & 230Vac (100% load)

动态回应

± 5% @ 0-90% load , @ 115Vac & 230Vac (Slew Rate: 0.1A/µS)

CC 型号 LED系统电压范围

18-36Vdc

升压时间

< 50ms @ 115Vac & 230Vac

额定输入电压

100-240Vac

输入电压范围

90-264Vac

额定输入频率

50-60Hz

输入频率范围

47-63Hz

输入电流

3.50A max. @ 115Vac,
1.65A max. @ 230Vac

100% 负载效率

92.5% typ. @ 115Vac, 94.5% typ. @ 230Vac

涌入电流

65A typ. @ 230Vac

功率因数

0.98 typ. @ 115Vac,
0.95 typ. @ 230Vac

漏电流

< 0.75mA @ 230Vac

谐波失真总量

< 20% @ 115Vac/60 Hz & 230Vac/50 Hz (≥ 70% load)

功率损耗

< 0.64W @ 230Vac, at 0% load

底座 / 外壳上盖 Aluminium
指示灯 -
冷却方式 Convection
输入端 -
输出端 -
信号端 -
声压级（SPL） -
输入/输出端 -
信号 -
安装导轨 -
电线 -
保护结构 -
端子台 -
重量 1.70 kg (3.75 lb)	尺寸 252 x 90 x 43.8 mm 9.92” x 3.54” x 1.72”

运行温度

-40°C to +70°C

储存温度

-40°C to +85°C

功率降级

> 60°C de-rate power by 4% / °C
< 100Vac de-rate power by 2% / Vac

运行湿度

5 to 95% RH (Non-Condensing)

防震测试（非运行状态）

IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11ms, 3 shocks for each 3 directions

振动测试（非运行状态）

IEC 60068-2-6, Random: 5Hz to 500Hz (2.09G);
20 min per axis for all X, Y, Z direction

运行高度

0 to 3,000 Meters (9,840 ft.)

污染程度

过压保护

41.4-50.4V, Latch Mode

超负载/过电保护

95-108% of rated load current, constant current limit, Auto-Recovery when the fault is removed

过热保护

Hiccup Mode, Auto-Recovery when the fault is removed

短路保护

Constant current limit, Auto-Recovery when the fault is removed

防护等级

IP65 (LNE-☐V320W A☐A)
IP67 (LNE-☐V320W B☐A and LNE-☐V320W D☐A)

防震保护

Class I with Primary Earth connection

MTBF

> 700,000 hrs. as per Telcordia SR-332
I/P: 115Vac, O/P: 100% load, Ta: 25°C

预计最长使用寿命

7 years (I/P: 115Vac & 230Vac, O/P: 100% load @ T case (tc) ≤ 75°C)

电气安全

CB scheme: IEC 61347-1, IEC 61347-2-13
ENEC: EN 61347-1, EN 61347-2-13, EN 62384
CCC: GB19510.1, GB19510.14
UL/cUL recognized: UL 8750 and CAN/CSA C22.2 No. 60950-1 (Safety approval and dry, damp, wet ratings)

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
ErP Directive 2009/125/EC to Commission Regulation (EU) No. 1194/2012

电隔离

Input to Output: 3.85kVac
Input to Ground: 2.0kVac
Output to Ground: 1.5kVac

材料与部件

RoHS Directive 2011/65/EU Compliant

排放

CISPR 15, EN 55015, GB17743
Compliance to CISPR 22, EN 55022, FCC Title 47: Class B

抗扰度

EN 61547, Compliance to EN 55024

谐波电流排放

IEC/EN 61000-3-2, Class C; GB17625.1

电压波动和闪变

IEC/EN 61000-3-3
