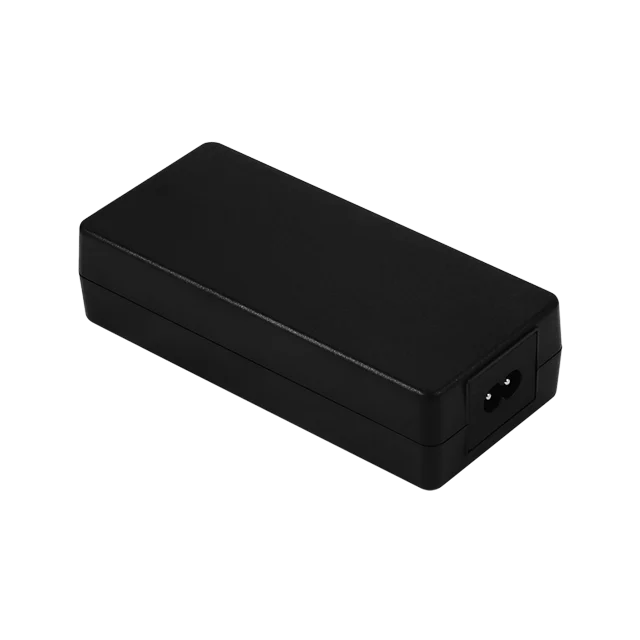

MDS-060BAS24 A

适配器

MDS Adapter 系列

MDS-060BAS24 A

输出电压

24V

输出功率

60W

输出电流

2.5A

输入电压范围

90-264Vac

尺寸 (L x W x H)

135 x 62 x 34.1 mm

5.31” x 2.44” x 1.34”

重量

0.34 kg (0.75 lb)

亮点与特色

Meet DOE Level VI
Safety Approvals to IEC 60601-1 & IEC 62368-1
Compliant with IEC 60601-1-2 4th Ed. Requirements
Low touch current (<0.1 mA Normal & <0.3 mA single fault)
Over-Voltage/Load/Temperature & Short Circuit protections
1 Million Hours MTBF
2 x MOPP (means of patient protection)
3 years warranty

** NRND **
推荐机种: MEA-065A24B A-A

应用领域

适配器

MDS Adapter 系列

MDS-060BAS24 A

亮点与特色

Meet DOE Level VI
Safety Approvals to IEC 60601-1 & IEC 62368-1
Compliant with IEC 60601-1-2 4th Ed. Requirements
Low touch current (<0.1 mA Normal & <0.3 mA single fault)
Over-Voltage/Load/Temperature & Short Circuit protections
1 Million Hours MTBF
2 x MOPP (means of patient protection)
3 years warranty

** NRND **
推荐机种: MEA-065A24B A-A

输出电压

24V

输出功率

60W

输出电流

2.5A

输入电压范围

90-264Vac

尺寸

135 x 62 x 34.1 mm

5.31” x 2.44” x 1.34”

重量

0.34 kg (0.75 lb)

应用领域

资源下载

Datasheet

Uploaded on 01-Dec-2023


Uploaded on 10-Feb-2026

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

认证

Uploaded on 18-Oct-2023

CCC

Uploaded on 22-Apr-2020

CE & UKCA

Uploaded on 21-Jun-2021

REACH

Uploaded on 02-Mar-2026

RoHS

Uploaded on 02-Mar-2026

TSCA

Uploaded on 15-Nov-2023

Uploaded on 22-Apr-2020

GUI Software

Tech Specs

输出电流

2.5A

输出电压

24V

输出功率

60W

线电压调整率

±0.5% (max.)

负载调整率

±5% (max.)

开机时间

3000ms @ 115Vac (max.)

保持时间

10ms @ 115Vac (min.)

动态回应

± 5% @ 50-100% load (Overshoot & Undershoot O/P Voltage)

额定输入电压

100-240Vac

输入电压范围

90-264Vac

额定输入频率

50-60Hz

输入频率范围

47-63Hz

输入电流

1.5A @ 115Vac, 0.75A @ 230Vac

100% 负载效率

88.3% (typ.)

底座 / 外壳上盖 PC / PC
指示灯 -
冷却方式 -
输入端 -
输出端 -
信号端 -
声压级（SPL） -
输入/输出端 -
信号 -
安装导轨 -
电线 -
保护结构 -
端子台 -
重量 0.34 kg (0.75 lb)	尺寸 135 x 62 x 34.1 mm 5.31” x 2.44” x 1.34”

运行温度

0°C to +40°C

储存温度

-40°C to +85°C

运行湿度

5 - 95% RH (Non-Condensing)

防震测试（非运行状态）

50G, 11ms, 3 shocks for each direction

振动测试（非运行状态）

5-500Hz, 2.09Grms, 20 minute for each three axis

过压保护

150%, Latch Mode (max.)

超负载/过电保护

180% of rated load current, Hiccup Mode, (Non-Latching, Auto-Recovery)

过热保护

Hiccup Mode, (Non-Latching, Auto-Recovery)

防护等级

IP21

防震保护

Class II

MTBF

1 million Hours based on Telecordia SR-332

电气安全

IEC60950-1 (Ed.2,2005), IEC 62368-1, GB4943.1-2011, GB9254-2008, GB17625.1-2003

In conformance with EN 60601-1: 2006 + A11: 2011 + A1: 2013 + A12: 2014 & EN 60601-1-2: 2015

医疗安全

IEC 60601-1 CB report
EN 60601-1, CAN/CSA-C22.2 NO. 60601-1, ANSI/AAMI ES 60601-1

电隔离

Input to Output 4000 Vac

UKCA

Medical Devices Regulations 2002(UK MDR 2002)

ITE Safety

IEC60950-1, IEC62368-1, GB4943.1, GB9254, GB17625.1

排放

EN/BS EN 55011, EN/BS EN 55032, Compliance to FCC Title 47:Class B
